(8-002) - OIL COOLER, HYDRAULIC

Запчасти Case IH 2096 (8-002) - OIL COOLER, HYDRAULIC (08) - HYDRAULICS

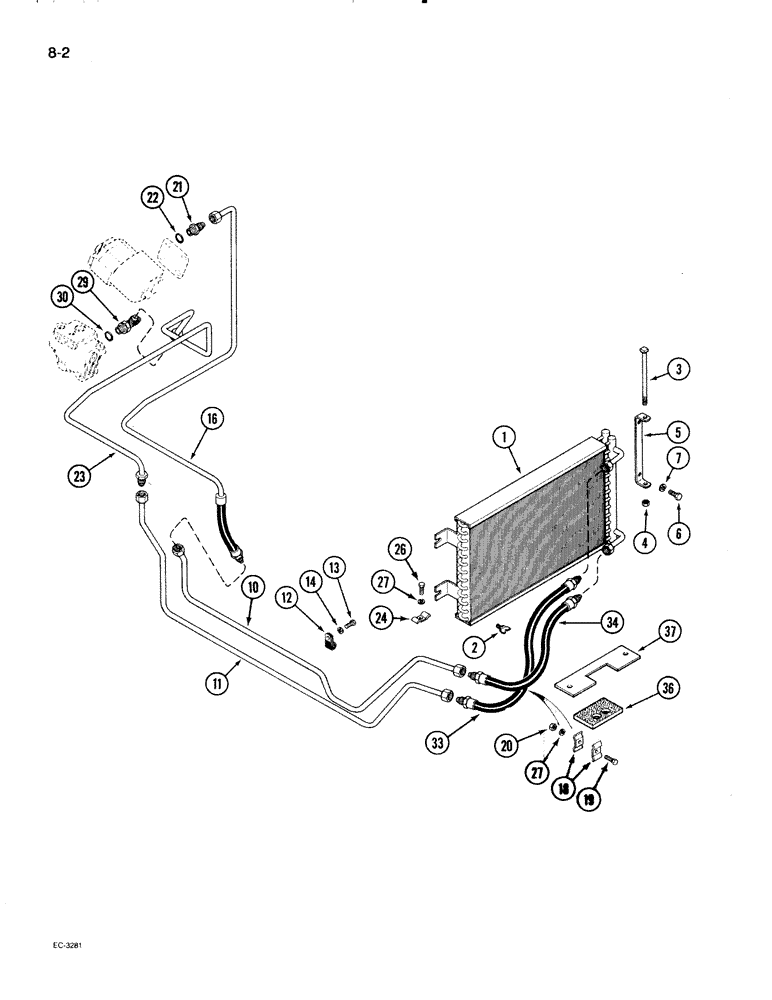

Схема запчастей Case IH 2096 - (8-002) - OIL COOLER, HYDRAULIC (08) - HYDRAULICS
14
1
30
29
3
27
37
11
36
12
26
23
19
16
5
27
6
13
24
4
7
34
22
33
20
21
10
18
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160399

COOLER

- hydraulic oil

1шт.

2

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- wing, 5/16 NC x 5/8 inch

2шт.

3

117-2

SQUARE BOLT,1/4" - 20 x 8 1/2", Gr 2

- square head, 1/4 NC x 8-1/2 inch

1шт.

4

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

5

A141489

SUPPORT

BRACKET - pivot, oil cooler

1шт.

6

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

A169713

TUBE

- inlet

1шт.

11

A169711

TUBE

- outlet

1шт.

12

49838

CLAMP

- tube

4шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 - 1.25 x 20 mm

4шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

16

A165759

HOSE

TUBE inlet

1шт.

18

A169743

CLAMP

- tube, outlet hose to inlet hose

2шт.

19

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

1шт.

20

825-1408

NUT,M8, Cl 8

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

A167458

TUBE

- rear, outlet

1шт.

24

A63323

CLAMP

- tube

1шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

A176268

HOSE,12.70 mm ID x 991.00 mm, SAE 100R1

- Cooler outlet 12.70 mm ID x 991.00 mm, SAE 100R1

1шт.

34

A169712

HOSE,12.70 mm ID x 830.00 mm, SAE100 R1

12.70 mm ID x 830.00 mm, SAE 100R1 - Cooler inlet

1шт.

36

A166982

SEAL

- cooler hose

1шт.

37

A166981

CLIP

- cooler, Serial Range: hose-seal

1шт.
