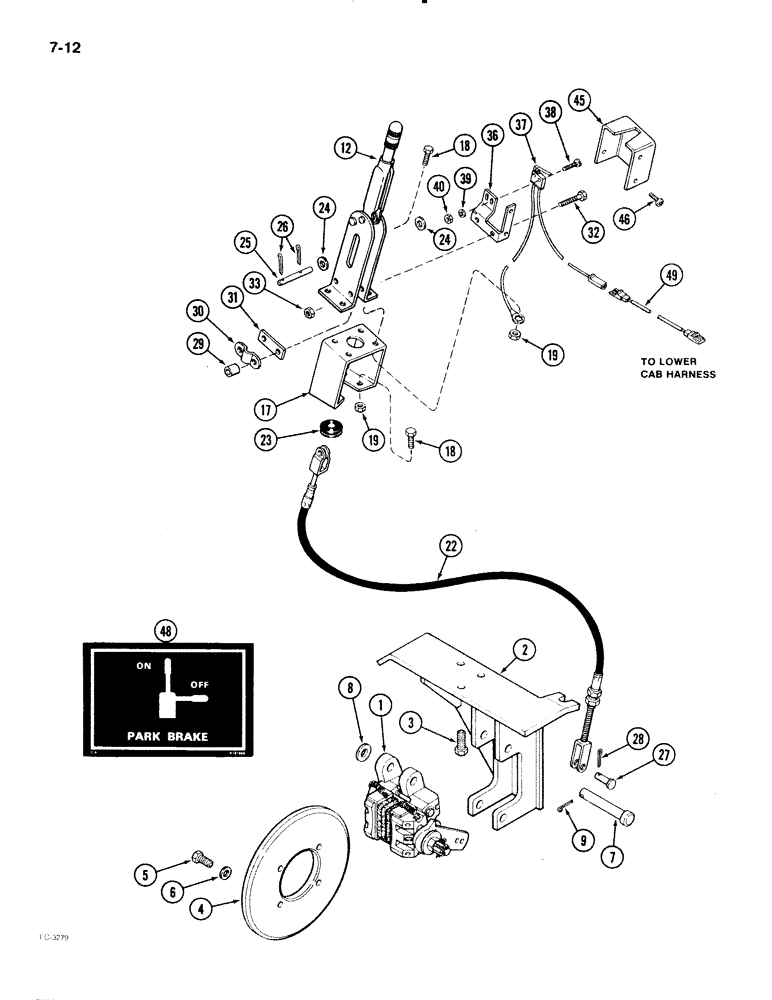

Запчасти Case IH 2096 (7-012) - HAND BRAKE (07) - BRAKES

1

A156788

BRAKE

ASSEMBLY - disc, mechanical caliper (See Figure 7-014)

1шт.

2

A158625

BRACKET

- disc brake

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

4

A156871

DISC

- parking brake

1шт.

5

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex, 3/8 NF x 1 inch

4шт.

6

A50820

WASHER

- hardened, 3/8 x 3/4 inch

4шт.

7

A158671

PIN

- brake support clevis

2шт.

8

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

9

32-818

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

2шт.

12

A75744

LEVER

- hand brake

1шт.

17

A176453

SUPPORT

- hand brake

1шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

8шт.

22

A176991

CABLE

- hand brake

1шт.

23

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- control cable

1шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

25

A176410

PIN

- clevis

1шт.

26

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

27

141-54

CLEVIS PIN,3/8" x 1 1/16"

hardened 3/8" x 1 1/16"

1шт.

28

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

29

A31238

BUSHING

SPACER - cable clamp

2шт.

30

A76109

CLAMP

- cable

1шт.

31

A75745

BUSHING

SHIM - cable clamp

1шт.

32

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

2шт.

36

A176408

BRACKET

- hand brake switch

1шт.

37

1343327C1

IGNITION SWITCH

SWITCH - hand brake

1шт.

38

70-30616

SCREW,Slotted Pan Hd, #6-32 x 1"

- slotted pan head, No. 6 x 1 inch, chrome

2шт.

39

495-31016

WASHER,#6

2шт.

40

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

45

A176409

COVER

- brake light switch

1шт.

46

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

3шт.

48

A167688

DECAL

- brake cover

1шт.

49

A176459

ELECTRICAL WIRE

CABLE - hand brake switch

1шт.
