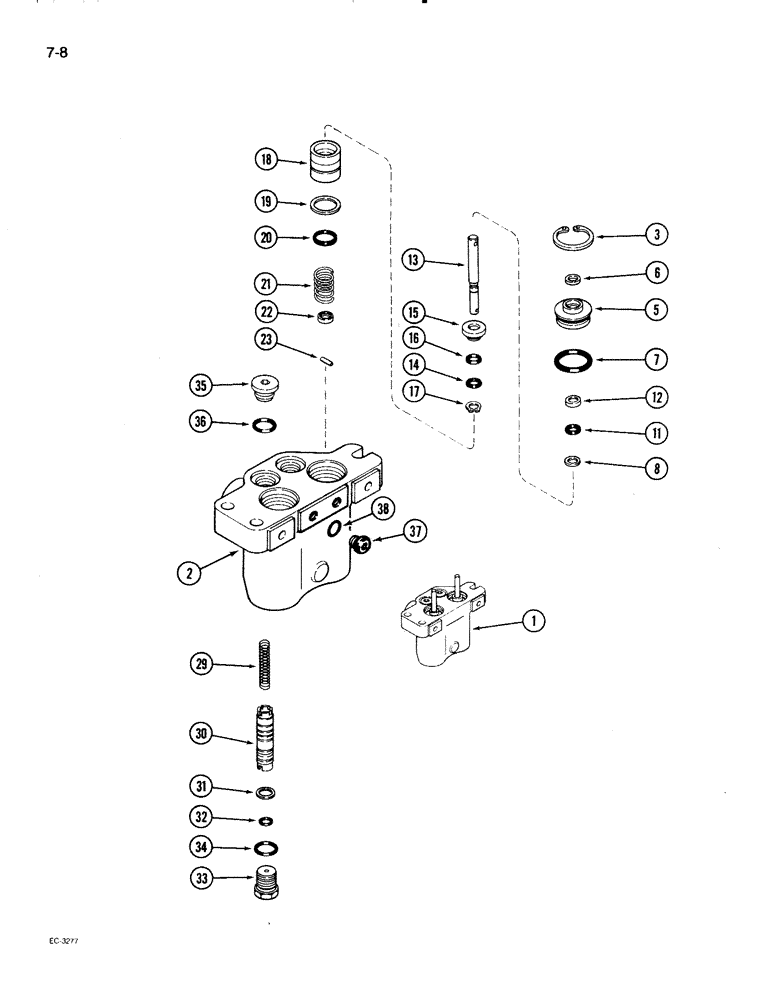

Запчасти Case IH 2096 (7-008) - MASTER BRAKE VALVE ASSEMBLY (07) - BRAKES

1

G105024

VALVE

ASSEMBLY - brake master, Includes: Ref. 2 - 38

1шт.

1

G107458

CYLINDER

VALVE ASSEMBLY - brake master (MFD tractor with trailer brake), Includes: Ref. 2 - 38

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order G105024)

1шт.

3

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , piston stop 1.375", Int, #137

2шт.

G101064

PISTON

ASSEMBLY - valve, Includes: Ref. 5 - 23

2шт.

5

G101063

STOP

ASSEMBLY - master cylinder piston, Includes: Ref. 6 - 12

1шт.

6

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- oil

1шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8

G101070

RING

- backup

1шт.

11

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

12

G101065

SEAL RETAINER

RETAINER - seal

1шт.

13

G101059

PIN,9.53mm OD x 110.62mm L

- piston

1шт.

14

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

15

G101060

WASHER

- sealing

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

G10659

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

G101062

PISTON

ASSEMBLY - master cylinder brake valve, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - brake valve (Order G101058)

1шт.

19

G101302

RING

SEAL - piston ring

1шт.

20

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-014, 90 Duro, .489" ID x .070" Thk

1шт.

21

G101303

SPRING

- master cylinder piston

1шт.

22

G101067

RETAINER

- spring

1шт.

23

G101304

PIN

- retaining

1шт.

29

A59950

SPRING

- booster spool

2шт.

G102283

SPOOL

ASSEMBLY - booster, Includes: Ref. 30 - 32

2шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - booster (Order G102283)

1шт.

31

A59951

RING

- backup

1шт.

32

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

33

A59948

PLUG

- reducer, Includes: Ref. 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

35

71100209

PLUG,Hex Soc, 3/4"-16 ORB

(1/2" tube), Incl Ref 36 Hex Soc, 3/4"-16 ORB

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/16 ID x 1/16" wide

1шт.

37

278548

PLUG,Hex, 7/16"-20 ORB

(With G107458), Incl Ref 38 Hex Soc, 7/16"-20 ORB

2шт.

38

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
