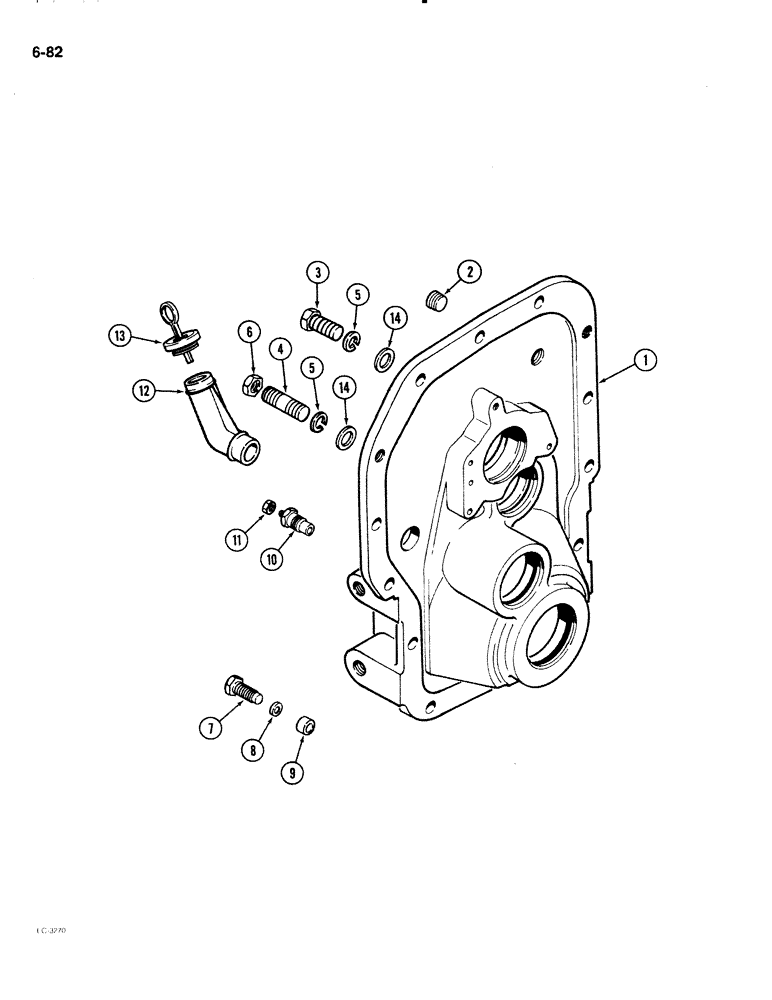

Запчасти Case IH 2096 (6-082) - PTO HOUSING (06) - POWER TRAIN

A67537

HOUSING

KIT - PTO housing, Includes: Ref. 1 and 2

1шт.

1

A157504

HOUSING

- PTO

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

10шт.

4

A168517

STUD

- transmission case to PTO housing

2шт.

5

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

6

25-1010

NUT,5/8"-11, G5

2шт.

7

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

8

L30674

WASHER

- starting motor mounting bolt

2шт.

9

A50011

SLEEVE

- dowel

2шт.

10

A154283

SWITCH

- sending unit, transmission temperature

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

12

A150353

TUBE

- oil filler

1шт.

13

A64404

BREATHER

COVER - oil filler tube, PTO housing

1шт.

14

A64303

WASHER

- flat, hardened steel

12шт.
