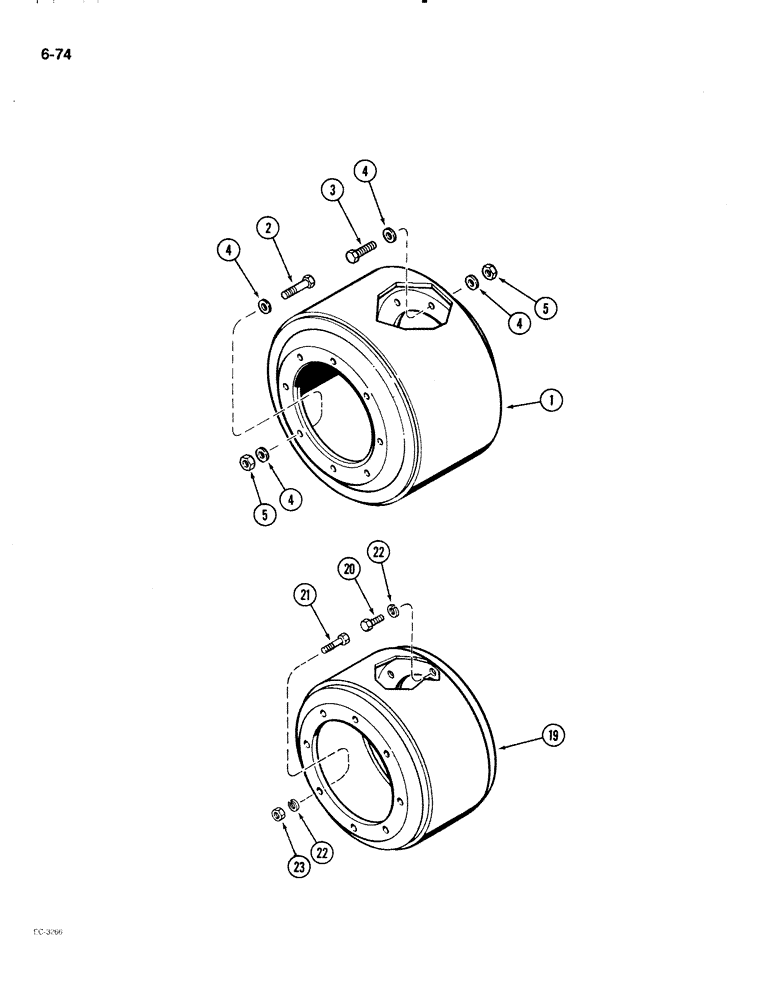

Запчасти Case IH 2096 (6-074) - DUAL WHEEL SPACER (06) - POWER TRAIN

A67430

PACKAGE

KIT - spacers, dual wheel, 38 and 42 inch wheels, Includes: Ref. 1 - 5

1шт.

1

A149059

BUSHING

SPACER - dual wheel, 38 and 42 inch wheels

2шт.

A67431

KIT

- hardware, dual wheel spacers, 38 and 42 inch wheels, Includes: Ref. 2 - 5

1шт.

2

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8, 38 and 42 inch wheels

16шт.

3

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, 38 and 42 inch wheels

16шт.

4

D31328

WASHER

- flat, 3/4 inch, 38 and 42 inch wheels

48шт.

5

129-572

NUT,3/4"-10, G8

38 and 42 inch wheels 3/4"-10, G8

32шт.

A67397

KIT - spacers, dual wheels, 34 inch, Includes: Ref. 19 - 23

1шт.

19

A145968

SPACER

- dual wheel, 34 inch

2шт.

A67399

KIT - hardware, dual wheel spacers, 34 inch wheels, Includes: Ref. 20 - 23

1шт.

20

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8, 34 inch wheels

16шт.

21

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch, grade 8, 34 inch wheels

16шт.

22

D31328

WASHER

- flat, 3/4 inch, 34 inch wheels

32шт.

23

429-1010

NUT,5/8"-11, G8

34" wheels 5/8"-11, G8

16шт.
