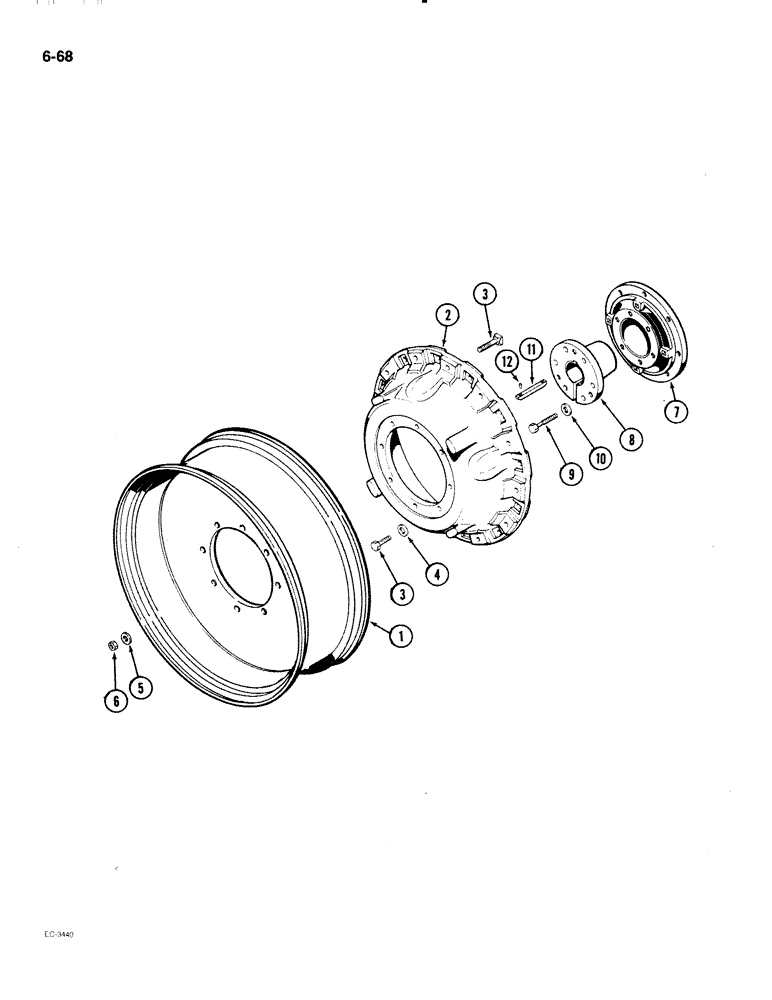

Запчасти Case IH 2096 (6-068) - REAR WHEELS, 46 INCH UNIVERSAL WHEEL (06) - POWER TRAIN

1

1978549C1

WHEEL

RIM - wheel (W12 x 46) (For 14.9 x 46 tire)

2шт.

2

1348284C1

RIM

WHEEL - rear, universal cast

2шт.

3

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8

40шт.

4

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

5

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

24шт.

6

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

A149014

HUB

ASSEMBLY - wheel, universal, Includes: Ref. 7 - 10

2шт.

7

A145322

HUB

- wheel, tapered

1шт.

8

A63805

BUSHING

- wheel, 3-7/8 inch ID

1шт.

9

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing

6шт.

10

D31328

WASHER

- flat, 3/4 inch

6шт.

11

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
