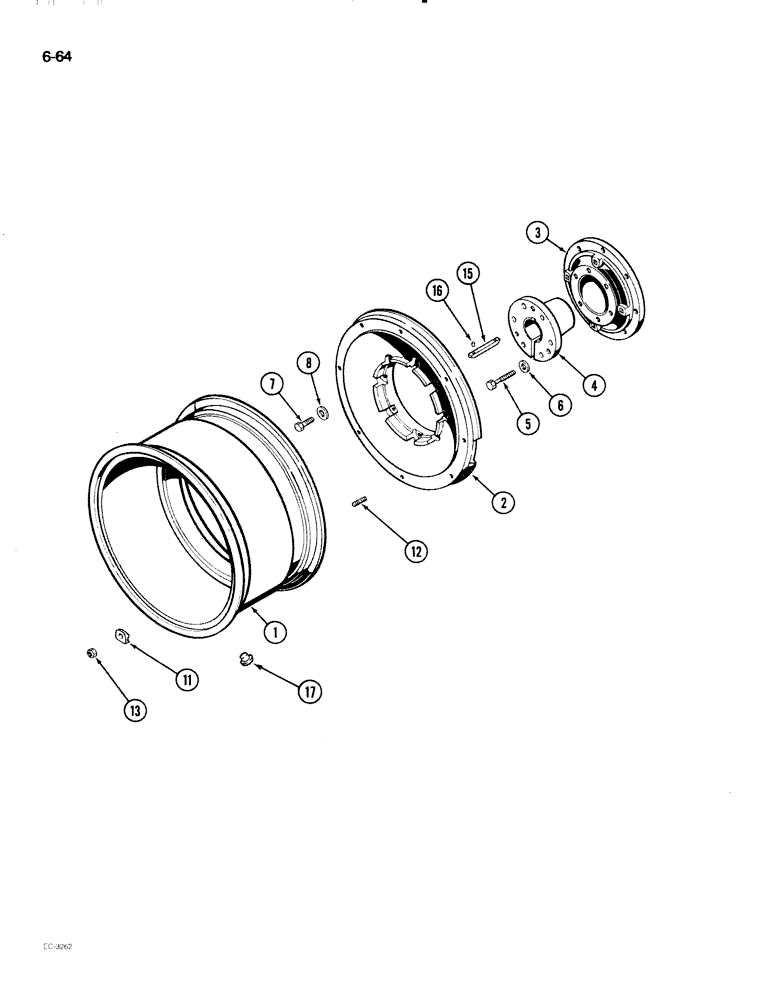

Запчасти Case IH 2096 (6-064) - REAR WHEELS, 30 INCH UNIVERSAL CAST WHEEL (06) - POWER TRAIN

1

A33176

RIM

- wheel (DW20-30) (For 23.1 x 30 tire)

2шт.

2

A181845

WHEEL

- rear, 30 inch, universal hub

2шт.

A59790

HUB ASSEMBLY - wheel, universal (For 3-1/2 inch O.D. axle), Includes: Ref. 3 - 6

2шт.

A149014

HUB

ASSEMBLY - wheel, universal (For 3-7/8 inch O.D. axle), Includes: Ref. 3 - 6

2шт.

3

A59791

HUB

- universal, tapered (For 3-1/2 inch O.D. axle)

1шт.

3

A145322

HUB

- universal, tapered (For 3-7/8 inch O.D. axle)

1шт.

4

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID

1шт.

4

A63805

BUSHING

- wheel, 3-7/8 inch ID

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing

6шт.

6

D31328

WASHER

- flat, 3/4 inch

6шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

16шт.

8

D31328

WASHER

- flat, 3/4 inch

16шт.

11

A166501

CLAMP

- wheel

12шт.

12

A60047

STUD

- clamp, 5/8 NC x 2-7/16 inch

12шт.

13

A27183

NUT

- hex special, 5/8 inch NC

12шт.

15

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

17

A145052

PLUG

- valve opening in rim

1шт.

1

A10693

RIM

- wheel (DW16-34) (For 18.4 x 34 tire), 34 inch universal cast wheel

2шт.

1

A33460

RIM

- wheel (DW20-34) (For 23.1 x 34 tire), 34 inch universal cast wheel

2шт.

2

A181844

WHEEL

- rear, 34 inch, universal hub, cast

2шт.

A59790

HUB ASSEMBLY - wheel, universal (For 3-1/2 inch O.D. axle), 34 inch universal cast wheel, Includes: Ref. 3 - 6

2шт.

A149014

HUB

ASSEMBLY - wheel, universal (For 3-7/8 inch O.D. axle), 34 inch universal cast wheel, Includes: Ref. 3 - 6

2шт.

3

A59791

HUB

- universal, tapered (For 3-1/2 inch O.D. axle), 34 inch universal cast wheel

1шт.

3

A145322

HUB

- universal, tapered (For 3-7/8 inch O.D. axle), 34 inch universal cast wheel

1шт.

4

A59792

HUB

BUSHING - wheel, 3-1/2 inch ID, 34 inch universal cast wheel

1шт.

4

A63805

BUSHING

- wheel, 3-7/8 inch ID, 34 inch universal cast wheel

1шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 34 inch universal cast wheel

6шт.

6

D31328

WASHER

- flat, 3/4 inch, 34 inch universal cast wheel

6шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, 34 inch universal cast wheel

16шт.

8

D31328

WASHER

- flat, 3/4 inch, 34 inch universal cast wheel

16шт.

11

A166501

CLAMP

- wheel, 34 inch universal cast wheel

16шт.

12

A60047

STUD

- clamp, 5/8 NC x 2-7/16 inch, 34 inch universal cast wheel

16шт.

13

A27183

NUT

- hex special, 5/8 inch NC, 34 inch universal cast wheel

16шт.

15

A63219

KEY

- axle, 3/4 x 6 inch, 34 inch universal cast wheel

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 34 inch universal cast wheel 1/4" x 1/2", Slotted

2шт.

17

A145052

PLUG

- valve opening in rim, 34 inch universal cast wheel

1шт.
