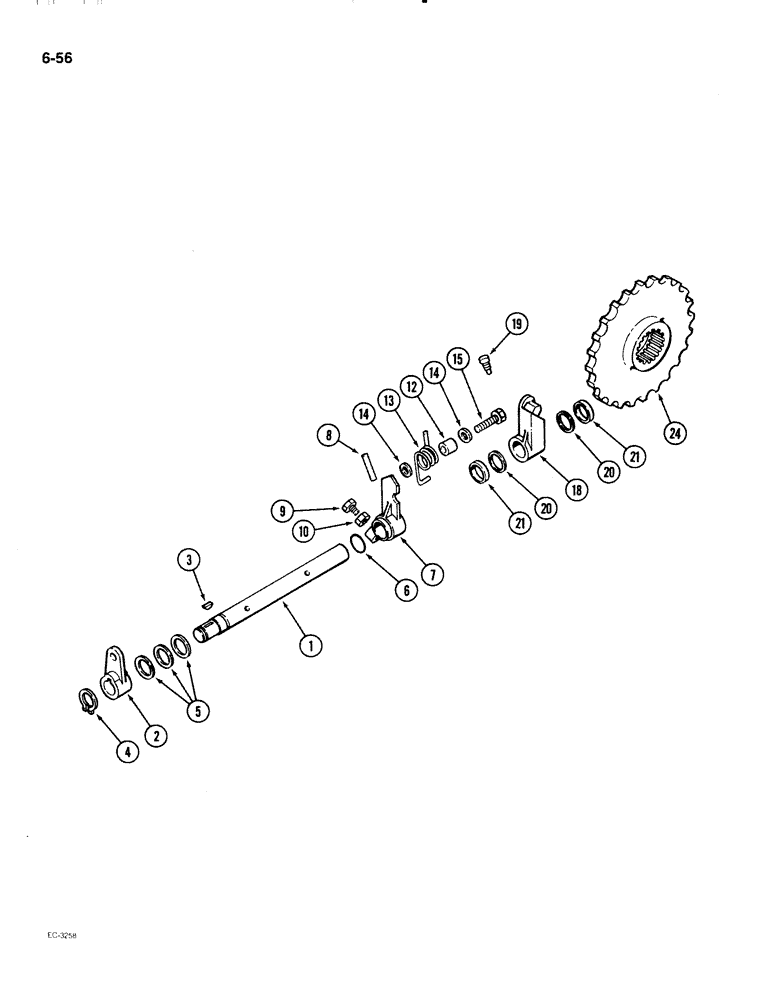

Запчасти Case IH 2096 (6-056) - PARK LOCK SHAFT AND GEAR (06) - POWER TRAIN

1

A152262

SHAFT

- actuator, park lock

1шт.

2

A67298

LEVER

- shaft operating

1шт.

3

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - Woodruff, 5/32 x 7/8 inch

1шт.

4

F62023

SNAP RING,#93, Ext

Ring, Snap, , shift lever #93, Ext

1шт.

5

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - 1/32 inch

1шт.

6

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- 1 ID x 3/32 inch wide

1шт.

7

A152271

LEVER

- detent, park lock

1шт.

8

138-2040

PIN,1/4" x 1 1/2", Coiled

1шт.

9

123-204

BOLT,Hex, 3/8"-16 x 2 1/2", G5, Full Thd

- hex tapping, 3/8 NC x 2-1/2 inch

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

12

A154464

SLEEVE

- torsion spring

1шт.

13

A154463

SPRING

- torsion

1шт.

14

95-81159

WASHER,3/8" x 7/8" x .083"

- flat, 3/8 x 7/8 x 5/64 inch

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

1349155C1

LEVER

- stop, park lock gear

1шт.

19

85-53812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch

1шт.

20

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - 1/32 inch

1шт.

21

A155862

SHIM

- 11/32 inch

1шт.

24

1349156C1

GEAR

- park lock, countershaft

1шт.
