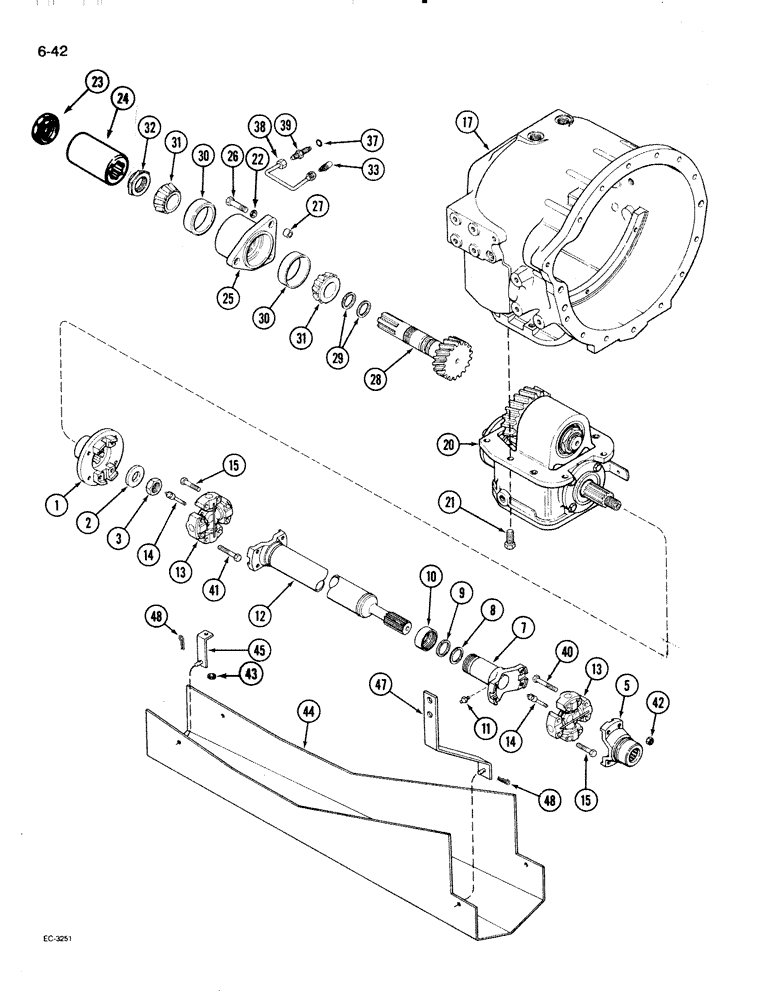

Запчасти Case IH 2096 (6-042) - POWER TRAIN, MFD TRACTORS (06) - POWER TRAIN

1

A156593

YOKE

- brake output shaft

1шт.

2

A75138

WASHER

- yoke retaining

1шт.

3

131-584

LOCK NUT,1 1/8"-12

NUT - light hex, self-locking, 1-1/8 inch NF

1шт.

5

A52072

FLANGE

- drive (See Figure 5-044)

1шт.

1975196C1

SHAFT

ASSEMBLY - drive (Use with Carraro axle 1975363C1), Includes: Ref. 7 - 15, Start Serial: 17898102

1шт.

A168482

SHAFT

ASSEMBLY - drive (Use with ZF axles A169532 and 1968459C1), Includes: Ref. 7 - 15, Serial Range: -17898102

1шт.

7

A47519

YOKE

- slip

1шт.

8

A47521

WASHER

- drive shaft

1шт.

9

A18390

WASHER

- felt

1шт.

10

A18388

CAP

- yoke

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

12

1975359C1

TUBE

- shaft (Used with shaft assembly 1975196C1)

1шт.

12

A48921

TUBE

- shaft (Used with shaft assembly A168482)

1шт.

13

A45595

SPIDER ,U-JOINT

JOINT - Universal, drive shaft

2шт.

14

A48953

FITTING

- grease, straight, 1/4 inch PT

2шт.

15

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, spider

16шт.

17

REF

INSTRUCTION

HOUSING - clutch (See Figure 6-002)

1шт.

20

A179665

GEARBOX ASSY

GEARBOX ASSEMBLY - transfer (See Figure 6-44)

1шт.

21

613-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 35 mm

8шт.

A168845

HOUSING

ASSEMBLY - input shaft, Includes: Ref. 22 - 32

1шт.

22

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

- flat, 41/64 x 1-3/16 x 1/8 inch

3шт.

23

A156561

NUT

- bearing adjusting, countershaft

1шт.

24

A185065

SPLINED COUPLING

COUPLING - countershaft

1шт.

25

A168057

HOUSING

- support, input shaft

1шт.

26

826-14060

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

Hex, M14 x 60, 10.9

3шт.

27

A156567

PIN

RING - dowel

2шт.

28

A168846

SHAFT

- input

1шт.

29

A156564

RING

- seal

2шт.

30

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - bearing, tapered roller, input shaft

2шт.

31

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

CONE - bearing, tapered roller, input shaft

2шт.

32

A156565

NUT

- bearing adjusting

1шт.

33

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

37

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

38

A157297

TUBE

- countershaft lubrication, internal

1шт.

39

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

1шт.

40

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex, 3/8 NF x 2 inch, grade 8.8

4шт.

41

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8.8

4шт.

42

3232736R1

WHEEL NUT,Wheel, M20 x 1.5

- wheel

4шт.

A181131

SHIELD

KIT - service, MFD driveline shield, Includes: Ref. 43 - 48

1шт.

43

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

44

A181257

GUARD

SHIELD - driveline (MFD)

1шт.

45

A180770

SUPPORT

- rear, driveline shield

2шт.

46

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 14 mm

2шт.

47

A180772

SUPPORT

- front, driveline shield

2шт.

48

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, 5/16 x 2-25/32 inch

4шт.
