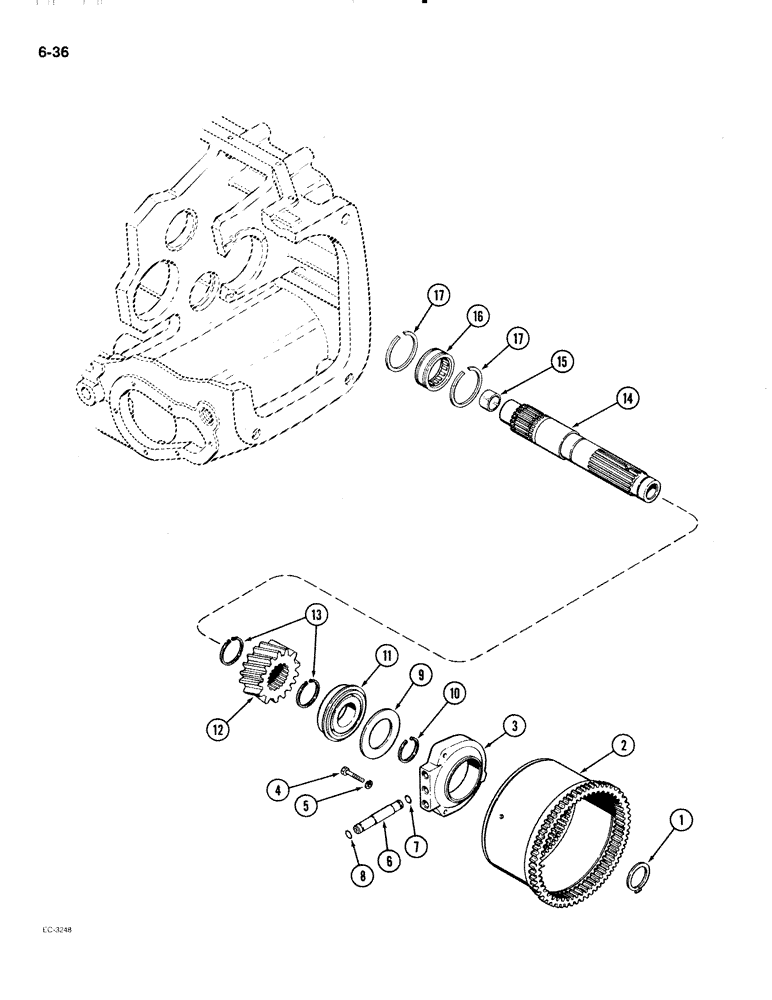

Запчасти Case IH 2096 (6-036) - POWER SHIFT TRANSMISSION, PLANETARY OUTPUT (06) - POWER TRAIN

1

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

2

REF

INSTRUCTION

CLUTCH - (C2) and (C3), (See page 6-33)

1шт.

Prior to Transmission S/N 16264559

1шт.

2

REF

INSTRUCTION

CLUTCH - (C2) and (C3), (See Figure 6-034)

1шт.

Transmission S/N 16264559 and after

1шт.

3

A61676

COVER ASSY

DISTRIBUTOR - oil

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

5

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

A153811

TUBE

- oil

3шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner (Replaces G102845)

3шт.

8

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

9

A64764

GUARD

SHIELD - bearing, planetary output shaft, center

1шт.

10

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, planetary output shaft center bearing

1шт.

11

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - ball, planetary output shaft, center

1шт.

12

A179214

GEAR

- drive, pinion

1шт.

13

A150927

RING

- retaining

2шт.

14

A168048

SHAFT

- pinion drive, Includes: Ref. 15

1шт.

14

A179326

SHAFT

- pinion drive, Includes: Ref. 15

1шт.

Transmission S/N 16264559 and after

1шт.

15

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- drive shaft

1шт.

16

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, planetary shaft, rear

1шт.

17

A28153

RING

- retaining, planetary shaft, rear bearing

2шт.
