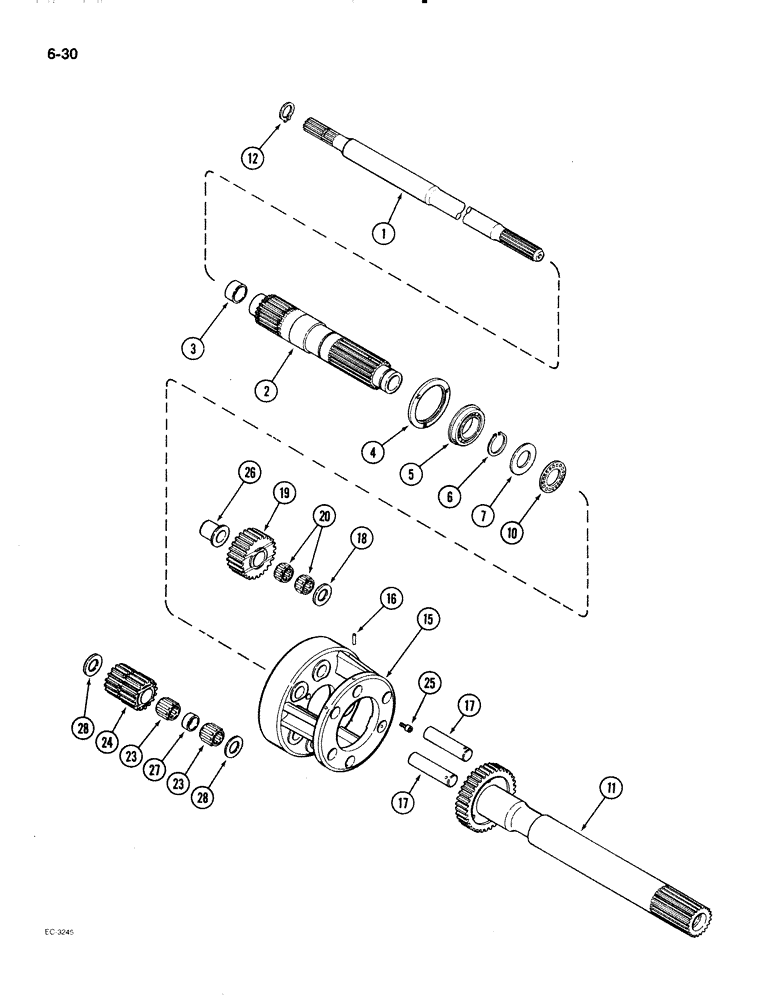

Запчасти Case IH 2096 (6-030) - POWER SHIFT TRANSMISSION, PLANETARY CLUTCH, TRANSMISSION SERIAL NUMBER 16264559 AND AFTER (06) - POWER TRAIN

1

A168389

SHAFT

- drive, PTO and hydraulic pump (51.4 in. long)

1шт.

2

A179326

SHAFT

- planetary output, Includes: Ref. 3

1шт.

3

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- drive shaft

1шт.

4

A146603

RETAINER

- planetary carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, planetary output shaft

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 2-1/2 inch

1шт.

10

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - needle, thrust, flanged

1шт.

11

A182708

SHAFT

- planetary drive, 23.10" long with bushing P/N A144797 at end, for shaft without bushing see Figure 8-024

1шт.

12

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

15

A168209

CARRIER

- planetary

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A168912

PIN,25.4mm OD x 105.28mm L

- planetary gear

6шт.

18

A150410

SPACER

RACE - thrust, planetary gear

3шт.

19

A179099

GEAR

- planetary, short

3шт.

20

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - needle, planetary gear

6шт.

23

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - needle, planetary gear

6шт.

24

A179196

GEAR

- planetary (Long)

3шт.

25

62-32510

HEX SOC SCREW,1/4" - 28 x 3/8"

SCREW - cap, hex socket, 1/4 NF x 5/8 inch

3шт.

26

A151046

SPACER

- flanged, short planetary gear

3шт.

27

A146606

SPACER

- roller bearing, long gear

3шт.

28

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear

6шт.
