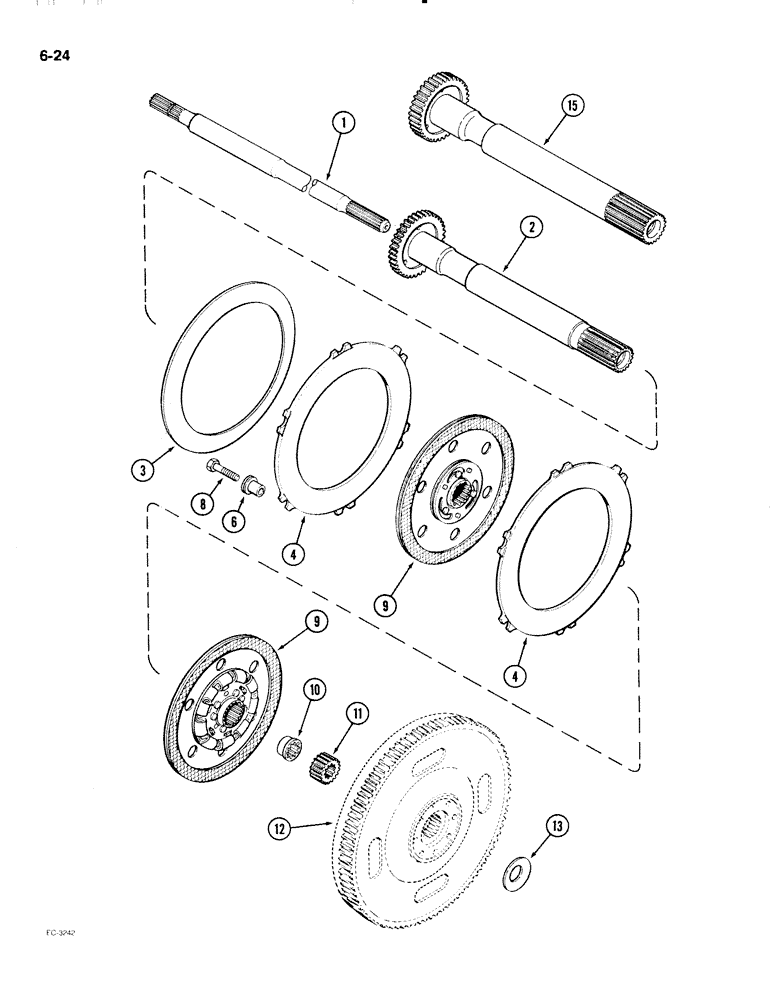

Запчасти Case IH 2096 (6-024) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

1

A168389

SHAFT

SHAFT - drive, PTO and hydraulic pump (51.4 in. long)

1шт.

2

A168580

SHAFT

SHAFT - planetary drive

1шт.

Prior to transmission S/N 16265423

1шт.

3

A64370

SPRING

SPRING - Belleville

1шт.

4

A155859

PLATE

PLATE - pressure

2шт.

6

A155865

RETAINER

RETAINER - torque limiter spring

6шт.

8

826-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

BOLT - hex, 12 mm x 65 mm, class 10.9

6шт.

9

1981314C1

TORQUE LIMITER,301.75mm OD

PLATE - torque limiter (Replaces 1981314)

2шт.

9

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate

2шт.

9

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.

10

A65415

BUSHING,17T

BUSHING - drive shaft

1шт.

11

A157385

SLEEVE

SLEEVE - drive shaft

1шт.

12

J905032

FLYWHEEL

FLYWHEEL ASSEMBLY - engine (See Figure 2-036)

1шт.

P/N J905032 subs to new J917080 flywheel assy. which accomodates a new PTO adapter hub P/N A182517. Also, hardware J903782 to J908181 bolt. ECN900437 Ref.: NTR SB 010 91 service bulletin, the flywheel changed at S/N 17898321

1шт.

13

A157296

WASHER

WASHER - spring, wave

1шт.

15

A168205

SHAFT

SHAFT drive, 23.10 in. long with no bushing at end

1шт.

Transmission S/N 16265423 to P.I.N. 17898321

1шт.

15

A182708

SHAFT

SHAFT planetary drive, 23.10 in. long, with bushing A144797 at end, Start Serial: 17898321

1шт.
