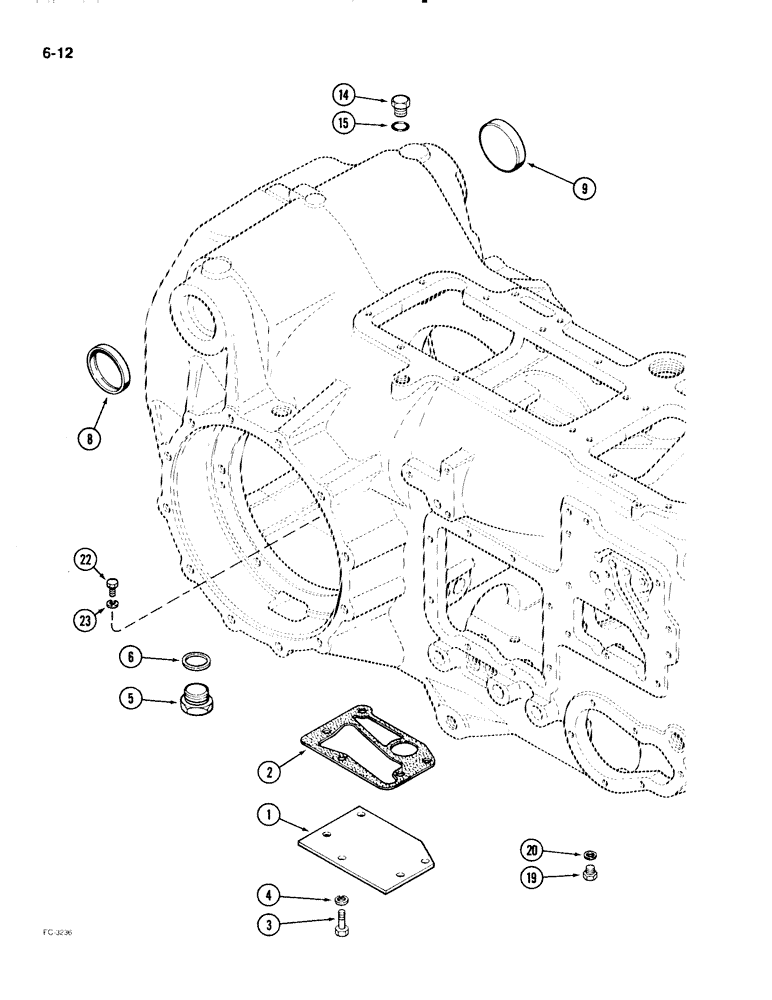

Запчасти Case IH 2096 (6-012) - TRANSMISSION HOUSING COVERS AND PLUGS, TRACTORS WITHOUT HITCH (06) - POWER TRAIN

1

A162800

PLATE

COVER - transmission bottom

1шт.

2

A185804

MANIFOLD GASKET

- cover

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

4

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

5

A63498

PLUG

- sensing lever opening

1шт.

6

A63447

GASKET

- plug

1шт.

8

41-1058

PLUG,Cup, 3 5/8"

- cup, 3-5/8 inch O.D. (Right rockshaft opening)

1шт.

9

41-1054

PLUG,Cup, 3 3/8"

- cup, 3-3/8 inch O.D. (Left rockshaft opening)

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 15 Hex Hd, 7/8"-14 ORB

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

A20826

PLUG

- hex, transmission case

1шт.

20

A11530

GASKET

WASHER - plug, copper

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
