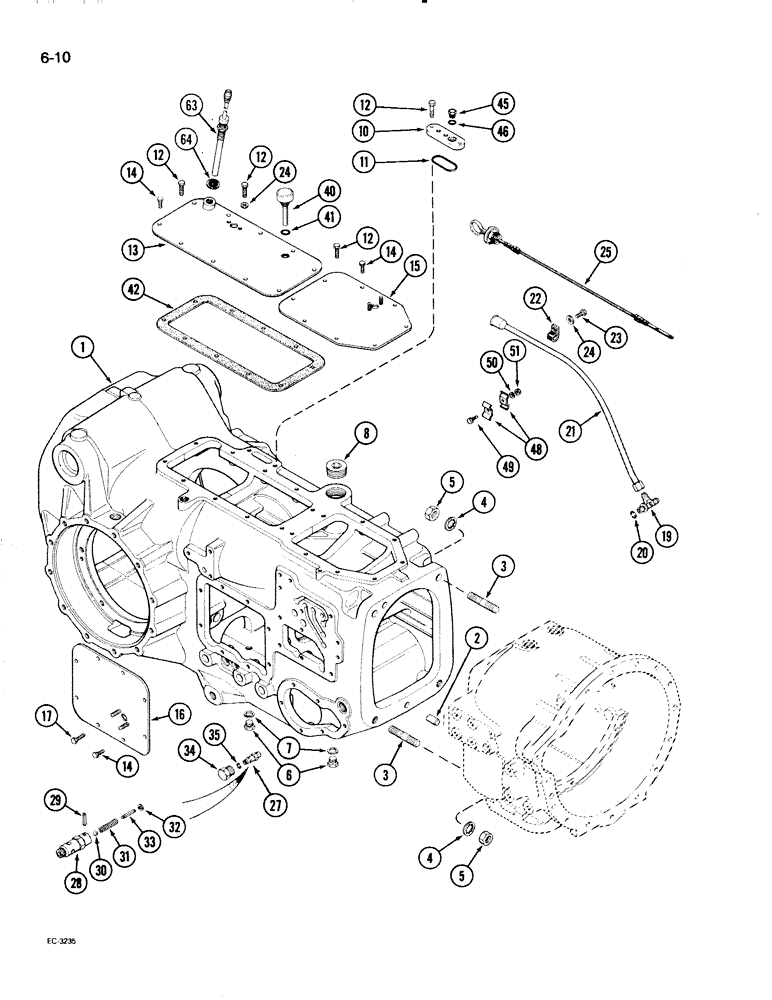

Запчасти Case IH 2096 (6-010) - POWER SHIFT TRANSMISSION HOUSING (06) - POWER TRAIN

1

A182425

HOUSING

- transmission

1шт.

2

A28269

PIN

- dowel

2шт.

3

A151866

STUD

- 7/8 NF x 4 inch

2шт.

4

193-75

LOCK WASHER,7/8"

WASHER - heavy internal tooth lock, 7/8 inch

2шт.

5

25-1114

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

6

A140222

PLUG

- drain, transmission housing

2шт.

7

A58608

GASKET

- drain plug

2шт.

8

221-97

DRAIN PLUG,Sq Soc, 2"-11 1/2, NTPF

PLUG - square socket, 2 inch PT

1шт.

10

A179657

COVER

- charge pump outlet

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

13

A156743

COVER

- transmission top, rear

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

20шт.

15

A179059

COVER

- transmission top, front

1шт.

16

A179060

COVER

- transmission side

1шт.

For P/N A179060, the manufacturing facility used gasket eliminator but went to Loctite 515 later - a gasket was never used. Loctite 515 is the last recommendation by Engineering for that application. The dealer has since called back to advise that the gasket is P/N A155916. The part number is set up and stock is available.

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

A161146

FITTING

TEE - adjustable, dipstick, Includes: Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

21

A144056

TUBE

- dipstick

1шт.

22

49838

CLAMP

- retaining

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

25

A144055

DIPSTICK

- spiral, transmission oil

1шт.

Prior to S/N 10204527 P/N A154744 was used, which is flat per print. After S/N 10204527 P/N A144055 was used, which is spiral.

1шт.

27

A60890

VALVE

ASSEMBLY - relief, lubrication oil, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A60890)

1шт.

29

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

30

211-9

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

31

A60889

SPRING

- relief valve

1шт.

32

495-31016

WASHER,#6

1шт.

33

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

34

A67369

PLUG

- hex, cold oil relief valve

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

40

A154691

BREATHER

- transmission, Includes: Ref. 41

1шт.

41

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

42

A144226

GASKET

- cover

1шт.

45

214389

PLUG,3/4" - 16 ORB

Includes Ref. 46 Hex Hd, 3/4"-16 ORB

1шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

48

A169743

CLAMP

- tube

2шт.

49

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

50

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51

9635082

NUT,5/16" - 18, Gr 5

1шт.

63

A158683

TRANSMITTER

SENSOR - speed

1шт.

64

A75995

SEAL

- speed sensor

1шт.
