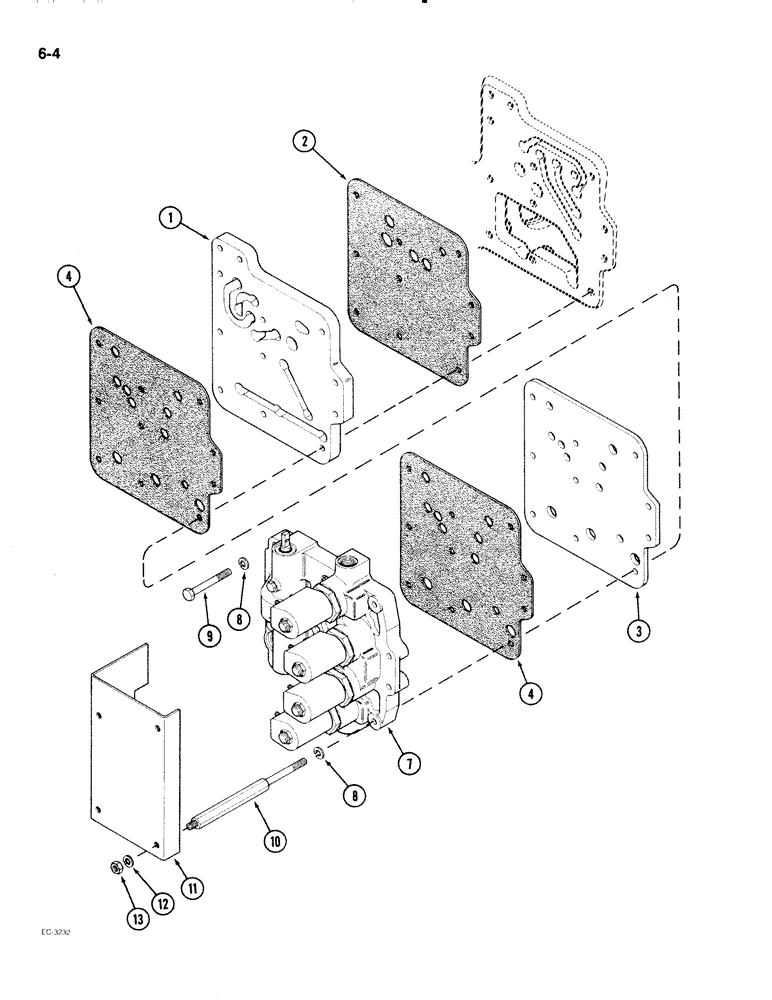

Запчасти Case IH 2096 (6-004) - HYDRAULIC MANIFOLD, ELECTRIC SHIFT (06) - POWER TRAIN

1

A158352

PLATE

- adapter, manifold

1шт.

2

1981261C1

MANIFOLD GASKET

- manifold (Replaces A158536)

1шт.

3

A158393

PLATE

- manifold

1шт.

4

1981260C1

MANIFOLD GASKET

- manifold (Replaces A158394)

2шт.

7

A158497

MANIFOLD

ASSEMBLY - electric shift (See Figure 6-006)

1шт.

8

192-81003

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

10

A168326

STUD

SPACER - manifold cover

4шт.

11

A160836

COVER

- soenoid

1шт.

12

192-81003

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

4шт.
