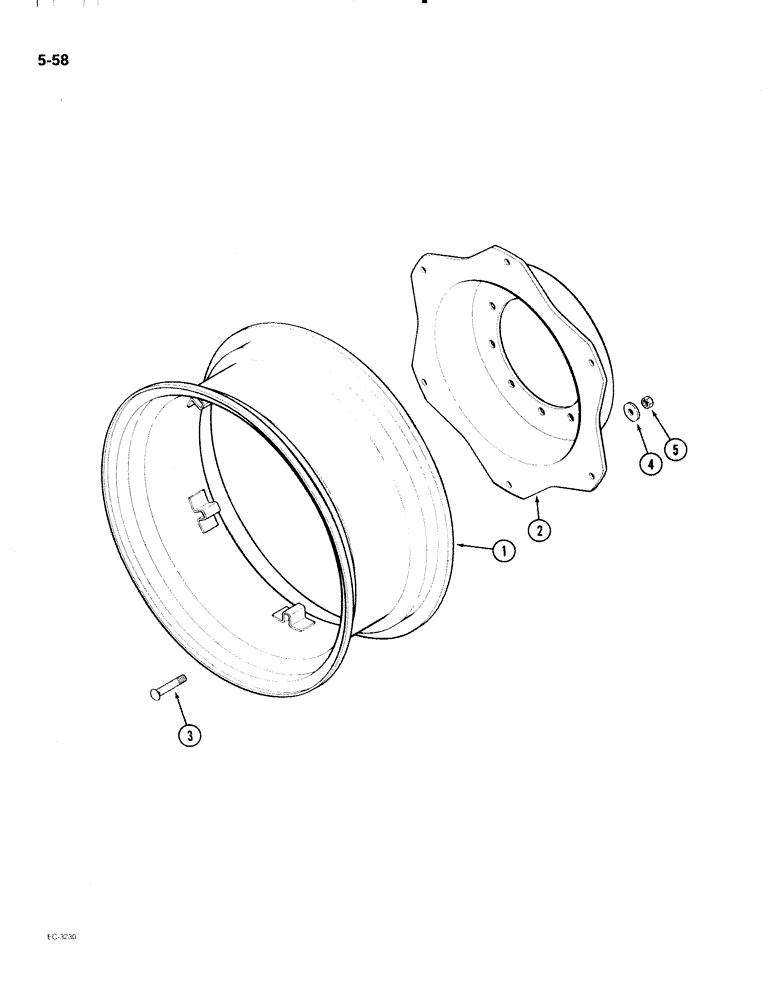

Запчасти Case IH 2096 (5-058) - FRONT WHEELS, MFD TRACTORS (05) - STEERING

NSS

NOT SOLD SEPARAT

WHEEL - front (W12 x 26) (For 14.9 tire), 26 inch, Includes: Ref. 1 - 5

2шт.

1

A169613

RIM

- front wheel (W12 x 26), 26 inch wheels

1шт.

2

A169610

DISC, WHEEL

DISK - 26 inch wheel

1шт.

3

111-642

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch, 26 inch wheels

6шт.

4

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

6шт.

5

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 26 inch wheels

6шт.

NSS

NOT SOLD SEPARAT

WHEEL - front (W15 x 26) (For 16.9 and 18.4 tires), 26 inch, Includes: Ref. 1 - 5

2шт.

1

A169614

RIM

- front wheel (W15 x 26), 26 inch wheels

1шт.

2

A169610

DISC, WHEEL

DISK - 26 inch wheel

1шт.

3

111-642

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch, 26 inch wheels

6шт.

4

195-139

WASHER,5/8" x 1 3/4" x .134

- flat, 11/16 x 1-3/4 x 9/64 inch, 26 inch wheels

6шт.

5

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 26 inch wheels

6шт.

NSS

NOT SOLD SEPARAT

WHEEL - front (W12 x 28) (For 13.6 and 14.9 tires), 28 inch, Includes: Ref. 1 - 5

2шт.

1

A169611

RIM

- front wheel (W12 x 28), 28 inch wheels

1шт.

2

A169609

DISC, WHEEL

DISC - 28 inch wheel

1шт.

3

111-642

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch, 28 inch wheels

6шт.

4

195-139

WASHER,5/8" x 1 3/4" x .134

- flat, 11/16 x 1-3/4 x 9/64 inch, 28 inch wheels

6шт.

5

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange 5/8 inch NC, 28 inch wheels

6шт.

NSS

NOT SOLD SEPARAT

WHEEL - front (W15 x 28) (For 16.9 tire), 28 inch, Includes: Ref. 1 - 5

2шт.

1

A169612

RIM

- front wheel (W15 x 28), 28 inch wheels

1шт.

2

A169609

DISC, WHEEL

DISC - 28 inch wheel

1шт.

3

111-642

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/4", G5

BOLT - carriage, 5/8 NC x 3-1/4 inch, 28 inch wheels

6шт.

4

195-139

WASHER,5/8" x 1 3/4" x .134

- flat, 11/16 x 1-3/4 9/64 inch, 28 inch wheels

6шт.

5

131-942

FLANGE NUT,Flg, 5/8"-11, G5

- hex, flange, 5/8 inch NC, 28 inch wheels

6шт.
