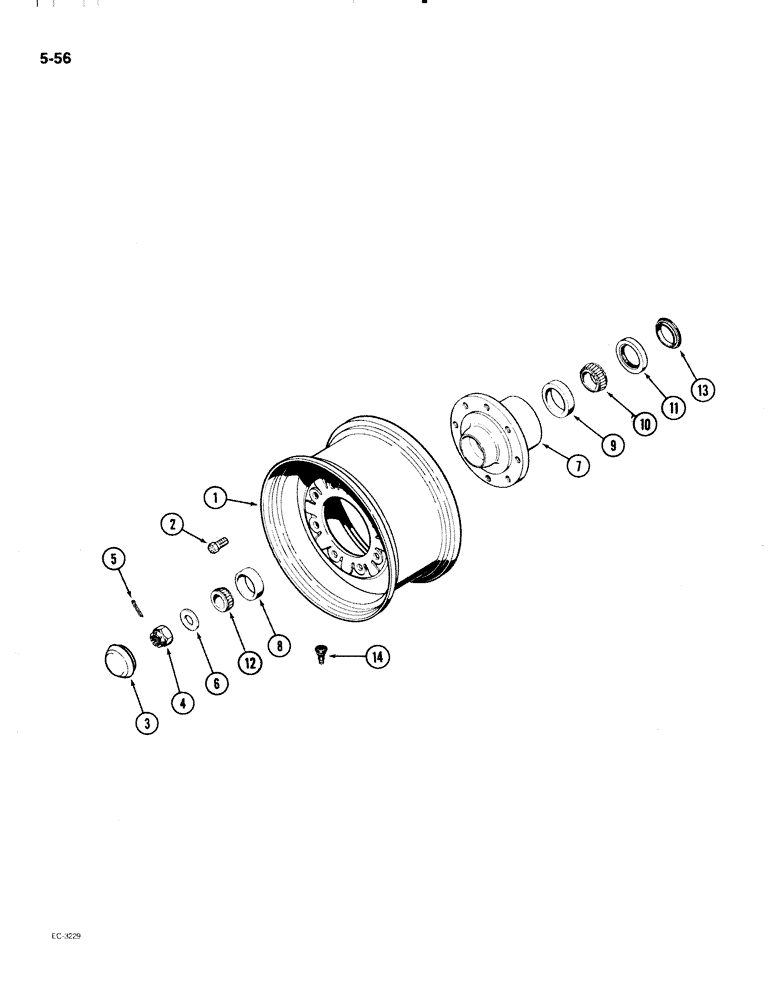

Запчасти Case IH 2096 (5-056) - FRONT WHEEL AND HUB, 8 BOLT HUB (05) - STEERING

1

A61570

WHEEL

- front (For 10.00 x 16 and 11.00 x 16 tires), standard wheel base

2шт.

1

A62132

WHEEL

- front (For 14L x 16 tire), standard wheel base

2шт.

2

A62567

WHEEL BOLT

BOLT - hex, special, wheel to hub, standard wheel base

16шт.

3

A29425

CAP

- hub, standard wheel base

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8 inch NF, standard wheel base

2шт.

5

32-1228

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , standard wheel base 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- front wheel spindle, standard wheel base

2шт.

A66759

HUB

ASSEMBLY - front wheel, standard wheel base, Includes: Ref. 7 - 11

2шт.

7

A51157

HUB

- front wheel, standard wheel base

1шт.

8

A27631

CUP

- bearing, standard wheel base

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, standard wheel base

1шт.

10

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, standard wheel base

1шт.

11

A57247

OIL SEAL

- outer, standard wheel base

1шт.

12

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, standard wheel base

2шт.

13

A57246

OIL SEAL

- inner, standard wheel base

2шт.

14

A38261

VALVE

- tire, tubeless, standard wheel base

2шт.

1

A61570

WHEEL

- front (For 10.00 x 16 and 11.00 x 16 tires), long wheel base

2шт.

1

A62132

WHEEL

- front (For 14L x 16.1 tire), long wheel base

2шт.

2

A62567

WHEEL BOLT

BOLT - hex, special, wheel to hub, long wheel base

16шт.

3

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub, long wheel base

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8 inch NF, long wheel base

2шт.

5

32-1228

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , long wheel base 3/16" x 1 3/4"

2шт.

6

A62919

WASHER

- front wheel spindle, long wheel base

2шт.

A66677

HUB

ASSEMBLY - front wheel, long wheel base, Includes: Ref. 7 - 11

2шт.

7

A66678

HUB

- front wheel, long wheel base

1шт.

8

G15214

BEARING CUP

CUP - bearing, long wheel base

1шт.

9

A61446

BEARING CUP

CUP - bearing, long wheel base

1шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, long wheel base

1шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- outer, long wheel base

1шт.

12

G15215

ROLLER BEARING

CONE - bearing, long wheel base

2шт.

13

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- inner, long wheel base

2шт.

14

A38261

VALVE

- tire, tubeless, long wheel base

2шт.
