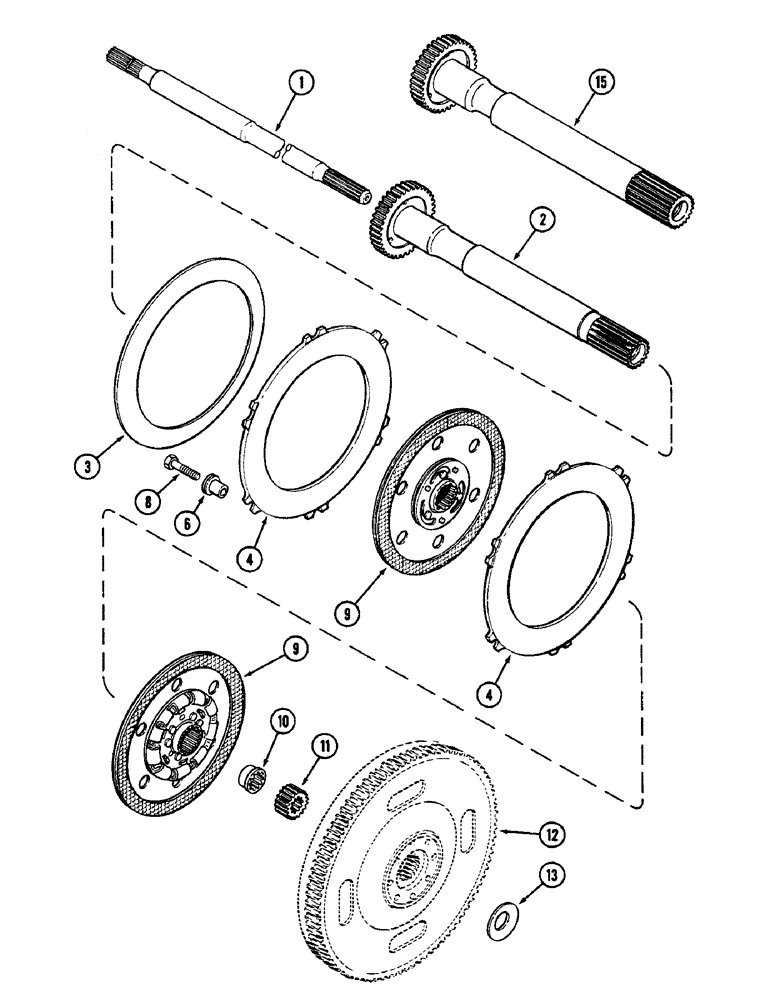

Запчасти Case IH 2096 (6-164) - POWER SHIFT TRANSMISSION, TORQUE LIMITER (06) - POWER TRAIN

1

A168389

SHAFT

- drive, PTO and hydraulic pump (51.4 in. long)

1шт.

2

A159531

SHAFT

- drive, planetary (Prior to transmission serial no. 16264559)

1шт.

3

A64370

SPRING

- Belleville

1шт.

4

A155859

PLATE

- pressure

2шт.

6

A155865

RETAINER

- spring, torque limiter

6шт.

8

826-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, M12 x 65 MM

6шт.

9

A157381

PLATE

- torque limiter

2шт.

10

A65415

BUSHING,17T

- drive shaft

1шт.

11

A157385

SLEEVE

- drive shaft

1шт.

12

REF

INSTRUCTION

FLYWHEEL, see Figure 2-032

1шт.

13

A157296

WASHER

- spring, wave

1шт.

15

A168205

SHAFT

- planetary drive (Transmission serial no. 16264559 and after)

1шт.
