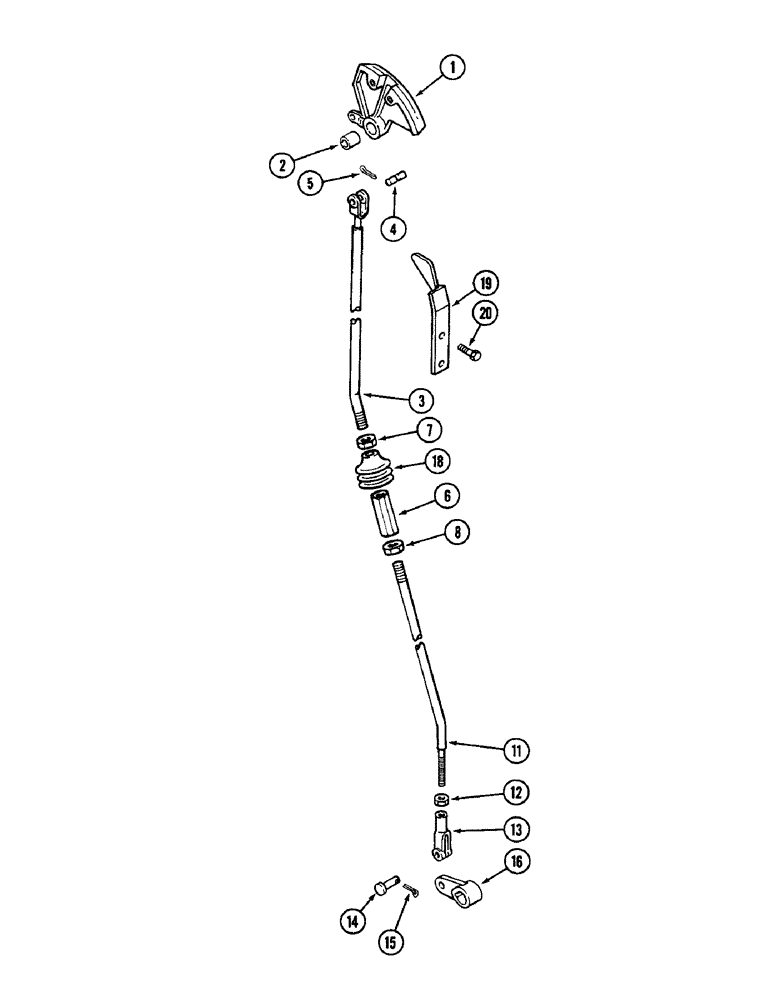

Запчасти Case IH 2096 (6-158) - POWER SHIFT TRANSMISSION, PARKING LOCK CONTROL (06) - POWER TRAIN

1

A161147

QUADRANT

ASSEMBLY - parking lock, Includes: Ref. 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

3

A161809

ROD

- park lock, upper

1шт.

4

A145484

PIN,9.46mm OD x 28.57mm L

- rod, quadrant

1шт.

5

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

6

A145050

TURNBUCKLE

- control rod

1шт.

7

129-165

JAM NUT,Jam, 1/2"-20, G5

(RH thread) Jam, 1/2"-20, G5

1шт.

8

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex, jam, 1/2 inch NF (Left thread)

1шт.

11

A161810

ROD

- park lock, lower

1шт.

12

129-123

NUT,3/8"-24, G5

1шт.

13

213-41

ADJUSTABLE CLEVIS,3/8"-24

- lower rod 3/8"-24

1шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

15

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-3/4 inch

1шт.

16

A67298

LEVER

- shift, parking lock, see Figure 6-196

1шт.

18

A145931

BELLOWS

GROMMET - rod

1шт.

19

A141543

BRACKET

- guide, hand lever

1шт.

20

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex, self-tapping, 1/4 x 3/4 inch hex

2шт.
