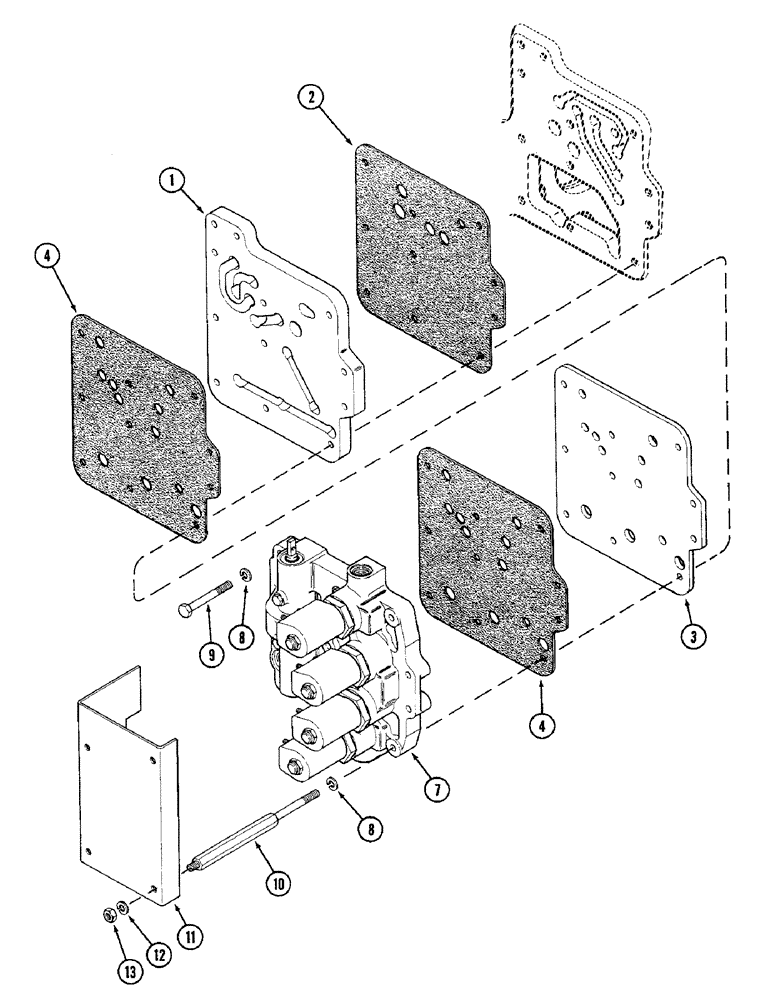

Запчасти Case IH 2096 (6-144) - HYDRAULIC MANIFOLD, ELECTRIC SHIFT (06) - POWER TRAIN

1

A158352

PLATE

- adapter, manifold

1шт.

2

A158536

MANIFOLD GASKET

- plate

1шт.

3

A158393

PLATE

- manifold

1шт.

4

A158394

MANIFOLD GASKET

- mounting, manifold

2шт.

7

REF

INSTRUCTION

MANIFOLD ASSEMBLY - electric shift, see Figure 6-146

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

9

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

10

A168326

STUD

- manifold cover

4шт.

11

A160836

COVER

- solenoid

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
