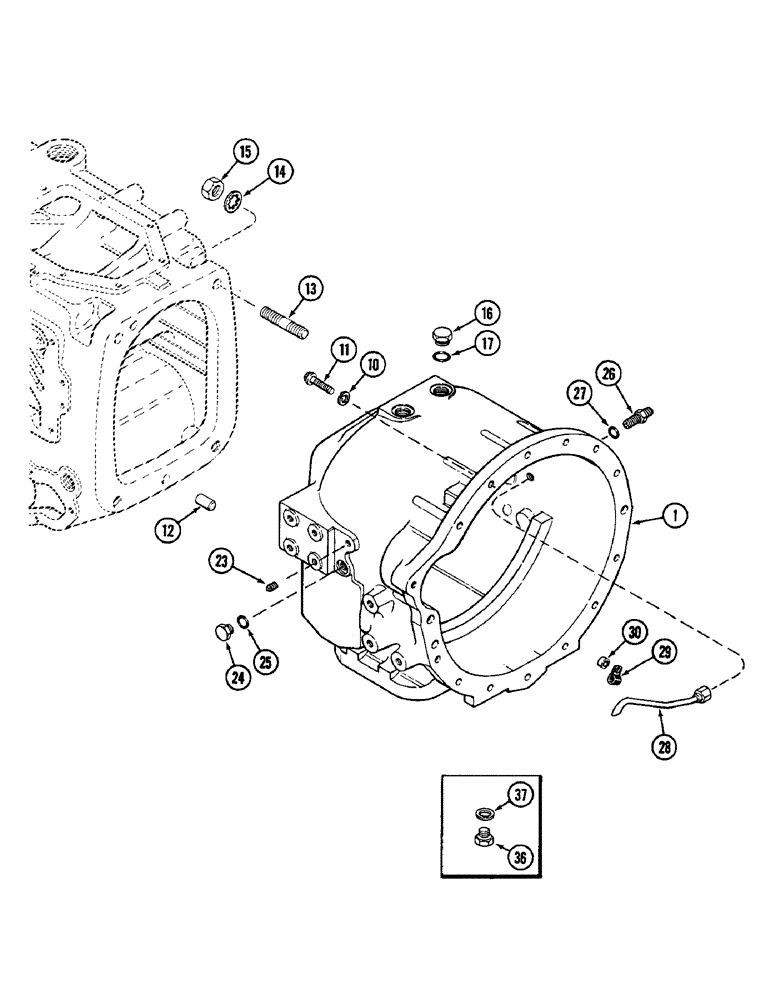

Запчасти Case IH 2096 (6-142) - POWER SHIFT TRANSMISSION, CLUTCH HOUSING (06) - POWER TRAIN

1

A168035

CLUTCH ASSEMBLY

HOUSING - clutch (With brake and MFD)

1шт.

1

A168425

HOUSING

- clutch

1шт.

10

892-1114

LOCK WASHER,M14

WASHER - lock, M14

16шт.

11

866-14070

12 PT SCREW,Flg, M14 x 70mm, Cl 12.9

BOLT - 12 point head, M14 x 2 x 70 MM

16шт.

12

A28269

PIN

- dowel

2шт.

13

A151866

STUD

- 7/8 NF x 4 inch

4шт.

14

193-75

LOCK WASHER,7/8"

WASHER - internal lock, 7/8 inch

2шт.

15

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

2шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy - (C1) and (C4) Pressure inlets, Includes: Ref. 17 Hex Hd, 1 1/16"-12 ORB

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 7/64 inch (19 x 23 x 3 MM)

1шт.

23

221-11

PLUG,Sq Hd, 1/8"-27

- square head pipe, 1/8 inch PT

1шт.

24

214389

PLUG,3/4" - 16 ORB

Assy, 1/2 tube, Includes Ref. 25 Hex Hd, 3/4"-16 ORB

1шт.

25

218-5346

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

- 55/64 x 1-3/32 x 7/64 inch (22 x 28 x 3 MM)

1шт.

26

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- bulkhead, 1/2 tube 3/4-16 inch thread (Lubrication tube)

1шт.

28

A168594

TUBE

- clutch lubrication

1шт.

29

49838

CLAMP

- tube

1шт.

30

R12644

BUSHING

SPACER - clamp

1шт.

36

A140222

PLUG

- drain (Used with A168425 housing)

1шт.

37

A58608

GASKET

- drain plug

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 5/64 inch (16 x 21 x 2 MM)

1шт.
