Запчасти Case IH 2096 (5-138) - FRONT WHEEL AND HUB, 8 BOLT HUB, LONG WHEEL BASE (05) - STEERING

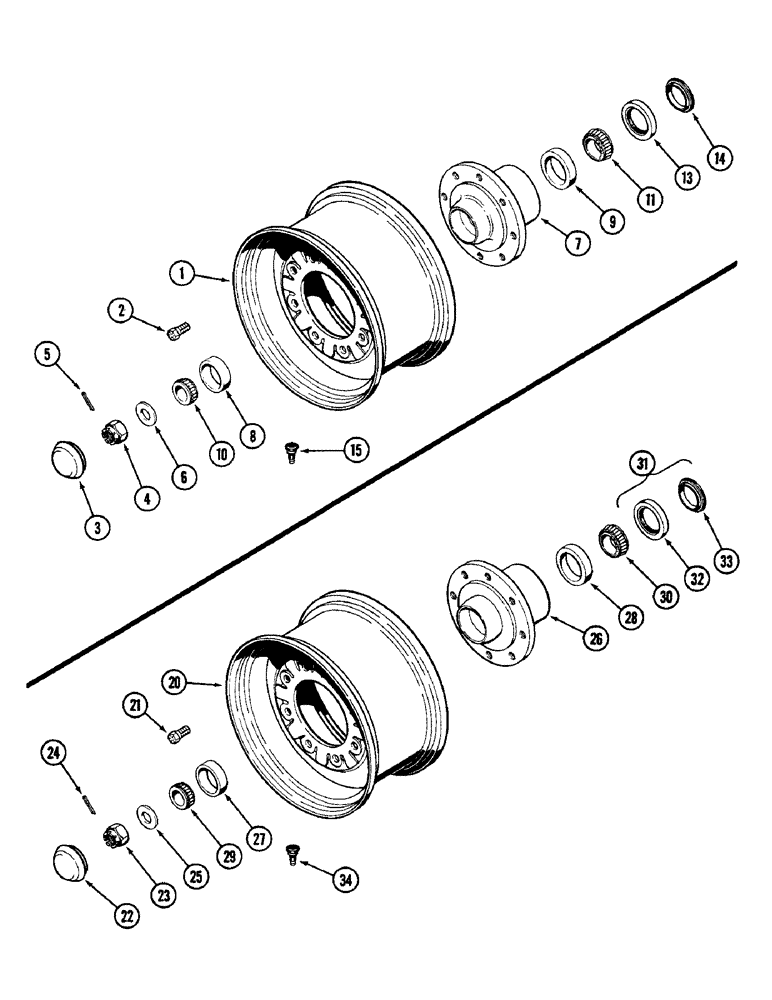

Схема запчастей Case IH 2096 - (5-138) - FRONT WHEEL AND HUB, 8 BOLT HUB, LONG WHEEL BASE (05) - STEERING
30
32
28
22
13
27
21
26
31
2
25
5
34
20
23
9
11
24
6
8
3
4
14
33
10
1
29
7
15

Артикул

Название

Примечание

Количество

1

A62132

WHEEL

- front (For 14L x 16.1 tire)

2шт.

1

A61570

WHEEL

- front (For 11.00 x 16 and 10.00 x 16 tire)

2шт.

2

A62567

WHEEL BOLT

BOLT - wheel to hub, 5/8-18 x 2 inch

16шт.

3

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62919

WASHER

- spindle nut

2шт.

7

A66759

HUB

ASSEMBLY - wheel, Includes: Ref. 8 and 9

2шт.

8

G15214

BEARING CUP

CUP - bearing, outer

1шт.

9

A61446

BEARING CUP

CUP - bearing, inner

1шт.

10

G15215

ROLLER BEARING

CONE - bearing, outer

2шт.

11

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

2шт.

13

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- outer

2шт.

14

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- inner

2шт.

15

A38261

VALVE

- tubeless tire

2шт.

20

A62132

WHEEL

- front (For 14L x 16.1 tire), 8 bolt hub standard wheel base

2шт.

20

A61570

WHEEL

- front (For 11.00 x 16 tire), 8 bolt hub standard wheel base

2шт.

21

A62567

WHEEL BOLT

BOLT - wheel to hub, hex special, 5/8-18 x 2 inch, 8 bolt hub standard wheel base

16шт.

22

A29425

CAP

- hub, 8 bolt hub standard wheel base

2шт.

23

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, 1-1/8 inch NF, 8 bolt hub standard wheel base

2шт.

24

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), , 8 bolt hub standard wheel base 3/16" x 2"

2шт.

25

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut, 8 bolt hub standard wheel base

2шт.

26

A51157

HUB

- wheel, 8 bolt hub standard base

2шт.

27

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 MM), 8 bolt hub standard wheel base

2шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 MM), 8 bolt hub standard wheel base

2шт.

29

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 MM), 8 bolt hub standard wheel base

2шт.

30

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 MM), 8 bolt hub standard wheel base

2шт.

31

A57250

OIL SEAL

ASSEMBLY - oil, hub, 8 bolt hub standard wheel base, Includes: Ref. 32 and 33

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference no. A57247), 8 bolt hub standard wheel base

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference no. A57246), 8 bolt hub standard wheel base

1шт.

34

A38261

VALVE

- tubeless tire, 8 bolt hub standard wheel base

2шт.

Выбрано товаров: 31
