(5-130) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS (CONTD)

Запчасти Case IH 2096 (5-130) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS (CONTD) (05) - STEERING

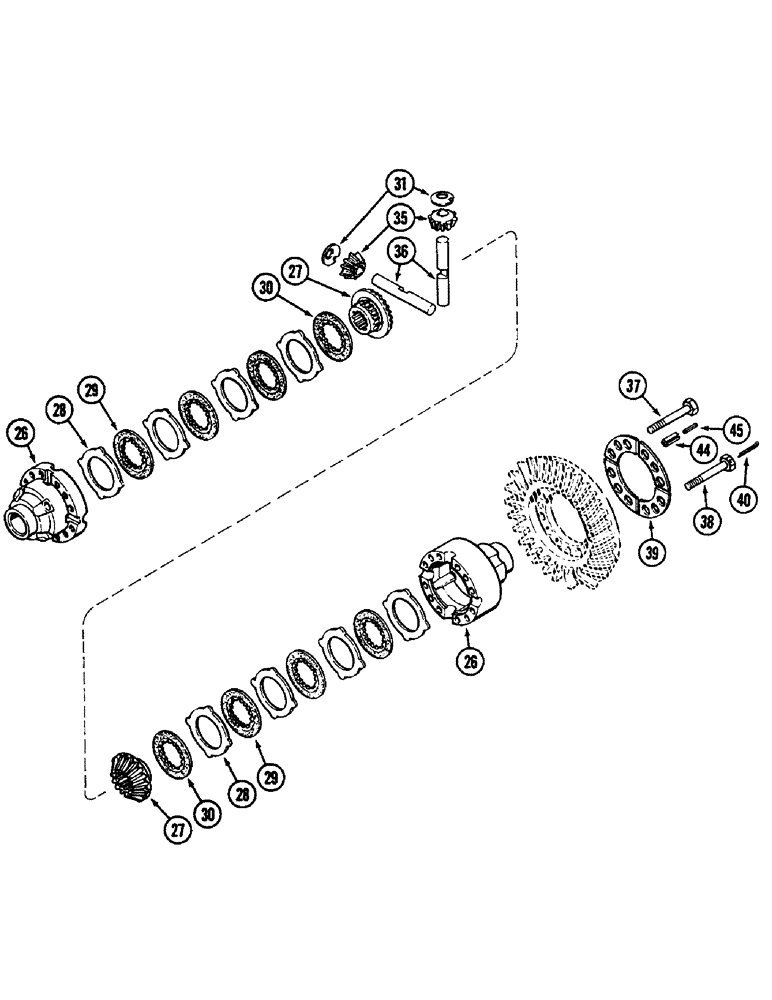

Схема запчастей Case IH 2096 - (5-130) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS (CONTD) (05) - STEERING
36
27
28
44
26
45
29
30
26
39
38
37
29
40
35
28
30
31
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169532

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 26 - 45 in this figure and parts in Figures 5-124 - 5-128, 5-132 and 5-134

1шт.

26

A52075

SLIP RING

SLIP DISK ASSEMBLY - limited, differential, Includes: Ref. 26 - 45

1шт.

26

A52076

CASE

ASSEMBLY - differential slip

1шт.

27

A52083

GEAR WHEEL

GEAR - side

2шт.

28

A52388

DISC

DISK - slip, outer

8шт.

29

A52078

DISK HARROW

DISK - slip, inner

6шт.

30

A52080

DISC

DISK - thrust, 3.0 MM

1шт.

30

A52081

DISK HARROW

DISK - thrust, 2.9 MM

1шт.

30

A52082

DISK HARROW

DISK - thrust, 2.8 MM

1шт.

31

A52085

WASHER

- thrust, pinion

4шт.

35

A52084

GEAR WHEEL

PINION - differential

4шт.

36

A52086

SHAFT

- pinion

2шт.

37

A52087

BOLT

BOLT - hex, M12 x 90 MM

4шт.

38

A52088

BOLT

BOLT - drilled hex, M12 x 90 MM

8шт.

39

A52089

PLATE ASSY.

PLATE - lock

4шт.

40

632-582

COTTER PIN,M2 x 25

PIN - cotter, MM M2 x 25

4шт.

44

A52090

AXLE PIN

PIN - roll, M12 x 28 MM

4шт.

45

A52092

AXLE PIN

PIN - roll, M7 x 30 MM

4шт.
