Запчасти Case IH 2096 (5-124) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER, MFD TRACTORS (05) - STEERING

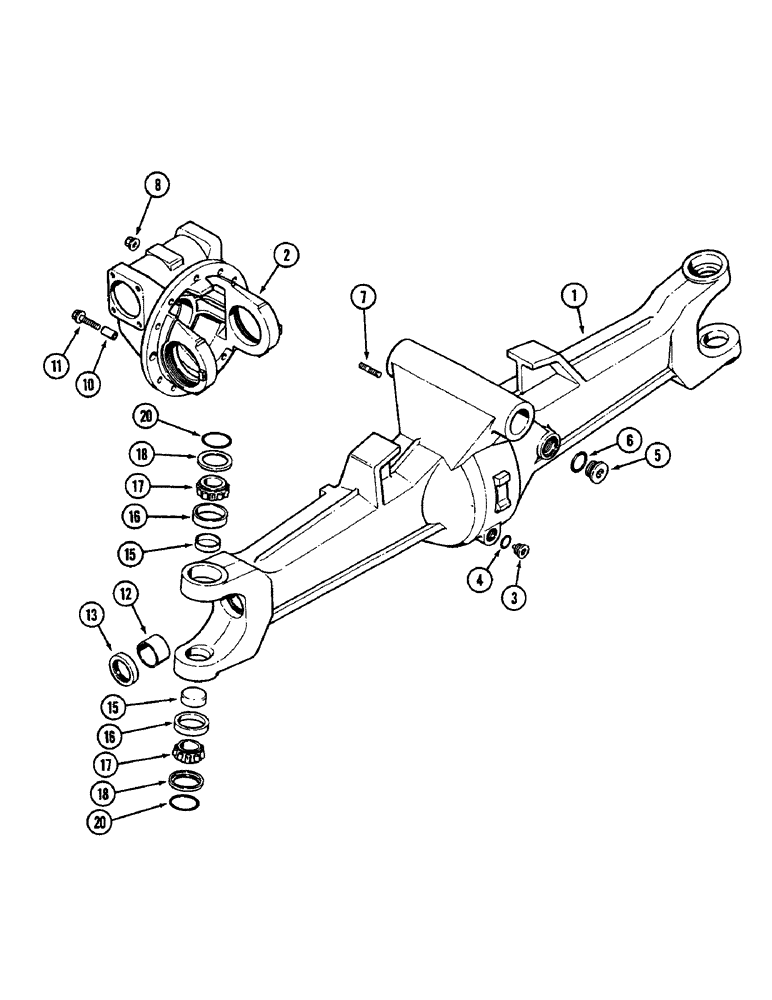

Схема запчастей Case IH 2096 - (5-124) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER, MFD TRACTORS (05) - STEERING
10
15
17
7
16
16
12
5
4
15
3
8
17
2
11
20
18
18
13
20
6
1

Артикул

Название

Примечание

Количество

A169532

AXLE

ASSEMBLY - front (Complete), Includes: Ref. 1 - 20 in this figure and parts in Figures 5-126 - 5-134

1шт.

1

A52093

HOUSING

- axle

1шт.

2

A52052

CARRIER

- differential, see Figure 5-128

1шт.

3

A48804

PLUG

- drain, hex socket M24

1шт.

4

A52097

O-RING,2mm Thk x 21mm ID

- drain plug

1шт.

5

A48791

PLUG

- fill, hex socket M42

1шт.

6

A52096

O-RING,2.5mm Thk x 38mm ID

- fill plug

1шт.

7

A52101

STUD

- carrier to housing, M14 x 55 MM

2шт.

7

A52100

STUD

- carrier to housing, M14 x 58 MM

3шт.

8

A52103

NUT

- hex, M14

5шт.

10

A52099

SLEEVE CYLINDER

SLEEVE - housing

1шт.

11

A52094

FLANGE BOLT

BOLT - hex

6шт.

11

A52095

FLANGE BOLT

BOLT - flanged hex, M14 x 55 MM

1шт.

12

A52104

BUSHING

SLEEVE - bearing

2шт.

13

A52102

SEAL

- shaft

2шт.

15

A52109

CAP COVER

CAP - end

4шт.

16

H753525

CUP

- bearing

4шт.

17

H753533

BEARING CONE

CONE - bearing

4шт.

18

A52112

SEAL

- cap

4шт.

20

A52113

O-RING,57 mm ID

- steering pivot

4шт.

Выбрано товаров: 20
