(5-122) - FRONT AXLE AND SUPPORT, MFD TRACTORS

Запчасти Case IH 2096 (5-122) - FRONT AXLE AND SUPPORT, MFD TRACTORS (05) - STEERING

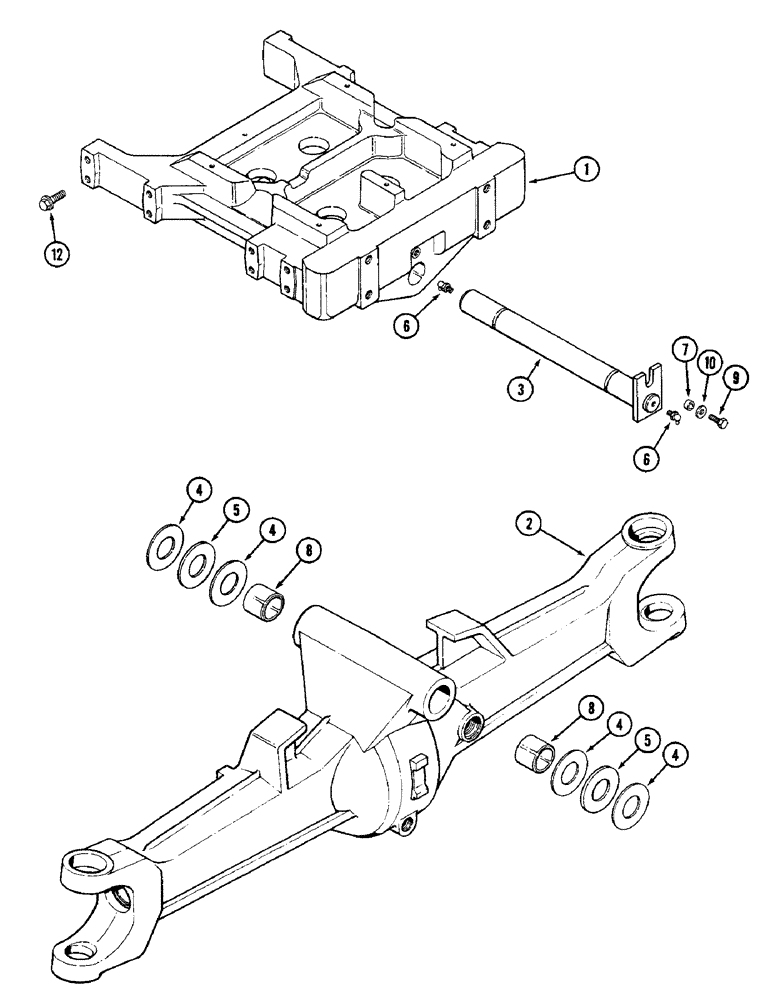

Схема запчастей Case IH 2096 - (5-122) - FRONT AXLE AND SUPPORT, MFD TRACTORS (05) - STEERING
10
1
4
5
9
6
5
8
6
4
7
4
4
12
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A169577

SUPPORT

- front axle

1шт.

2

A169532

AXLE

ASSEMBLY - front, see Figure 5-124

1шт.

3

A169586

PIN

- pivot, front axle

1шт.

4

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

thrust

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, nylon

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

A148908

SPACER

- pivot pin

1шт.

8

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot pin

2шт.

9

826-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, M12 x 30 MM

1шт.

10

L30674

WASHER

- pivot bolt

1шт.

12

A169100

BOLT

- mounting, support

16шт.
