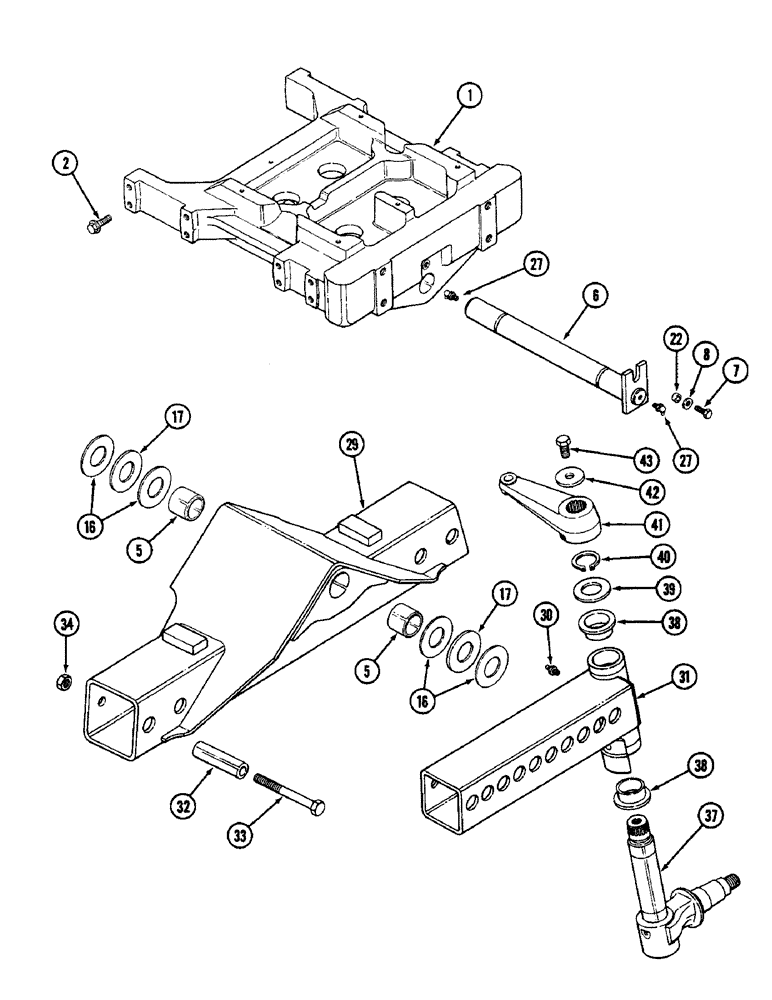

Запчасти Case IH 2096 (5-118) - ADJUSTABLE FRONT AXLE AND SUPPORT, WITH 108 INCH (2743 MM) WHEEL BASE (05) - STEERING

1

A169577

SUPPORT

- axle, front

1шт.

2

A169100

BOLT

- mounting, support

16шт.

5

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot pin

2шт.

6

A169586

PIN

- pivot, axle

1шт.

7

826-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, M12 x 30 MM

1шт.

8

L30674

WASHER

- pivot bolt

1шт.

16

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

thrust

1шт.

17

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, nylon

2шт.

22

A148908

SPACER

- pivot pin

1шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

29

A176713

AXLE

- center section

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 inch PT

4шт.

31

A143540

SHAFT

AXLE - left end section

1шт.

31

A143537

SHAFT

AXLE - right end section (Left shown)

1шт.

32

A139628

BUSHING

SPACER - adjusting bolt, axle

4шт.

33

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex, 7/8 NC x 7-1/2 inch (Grade 8)

4шт.

34

129-109

NUT,7/8"-9, G5

4шт.

37

A161274

SPINDLE

- wheel, front

2шт.

38

A143358

BUSHING,57.05mm ID x 62.08mm OD x 25.7mm L

- spindle

4шт.

39

A35347

SHIM,.1345" Thk

Washer - Spindle retainer .1345" Thk

2шт.

40

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

41

A147122

ARM

- steering, left spindle

1шт.

41

A147121

ARM

- steering, right spindle (Left shown)

1шт.

42

A161870

WASHER

- steering arm

2шт.

43

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.
