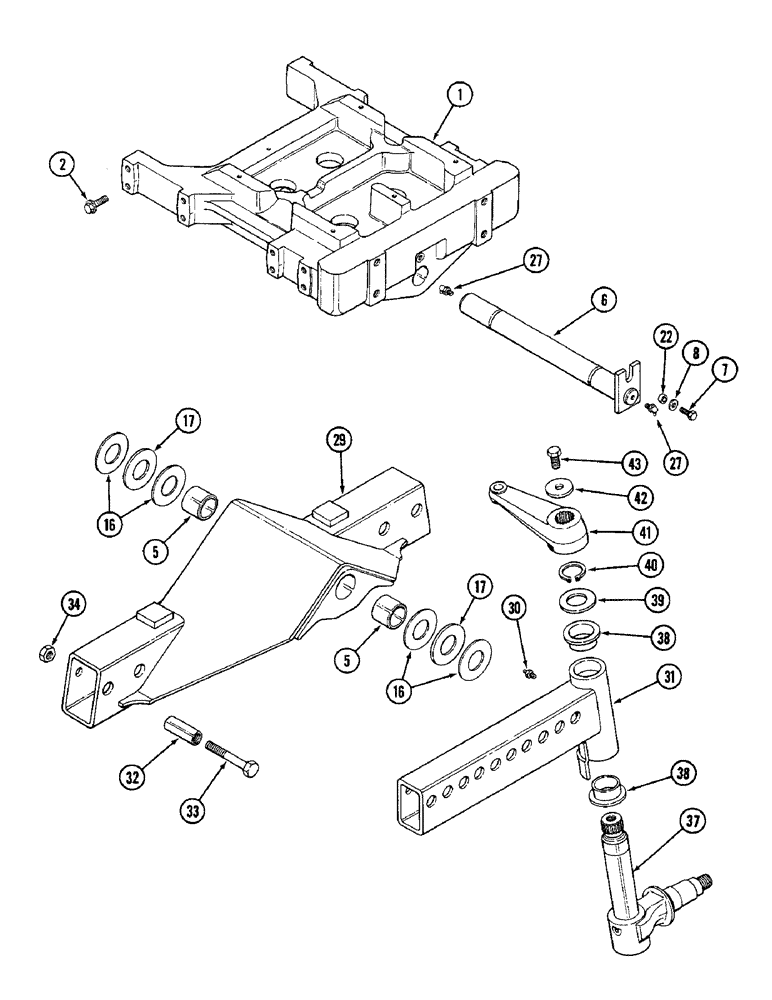

Запчасти Case IH 2096 (5-114) - ADJUSTABLE FRONT AXLE AND SUPPORT, WITH STANDARD WHEEL BASE (05) - STEERING

1

A169577

SUPPORT

- front axle

1шт.

2

A169100

BOLT

- mounting, support

16шт.

5

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot pin

2шт.

6

A169586

PIN

- pivot, axle

1шт.

7

826-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, M12 x 20 MM

1шт.

8

L30674

WASHER

- pivot, pin bolt

1шт.

16

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

thrust

1шт.

17

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, nylon

2шт.

22

A148908

SPACER

- pivot pin

1шт.

27

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

29

A176734

AXLE

- center section

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, 1/8 inch PT

2шт.

31

A160127

SHAFT

AXLE - left end section

1шт.

31

A160126

SHAFT

AXLE - right end section (Left shown)

1шт.

32

A137107

BUSHING

SPACER - adjusting bolt, axle

4шт.

33

26-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 8

- hex, 7/8 NC x 5-1/2 inch (Grade 8)

4шт.

34

129-109

NUT,7/8"-9, G5

4шт.

37

A167024

SPINDLE

- wheel, front

2шт.

38

A143174

BUSHING,51mm ID x 60.45mm OD x 28.57mm L

- spindle

4шт.

39

A31269

WASHER,38.89mm ID x 73.03mm OD x 3.17mm Thk

- retainer, spindle

2шт.

40

T37909

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

41

A160125

ARM

- steering, left spindle

1шт.

41

A160124

ARM

- steering, right spindle (Left shown)

1шт.

42

A161870

WASHER

- steering arm, 2-1/2 inch (64 MM)

2шт.

43

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.
