Запчасти Case IH 2096 (5-104) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

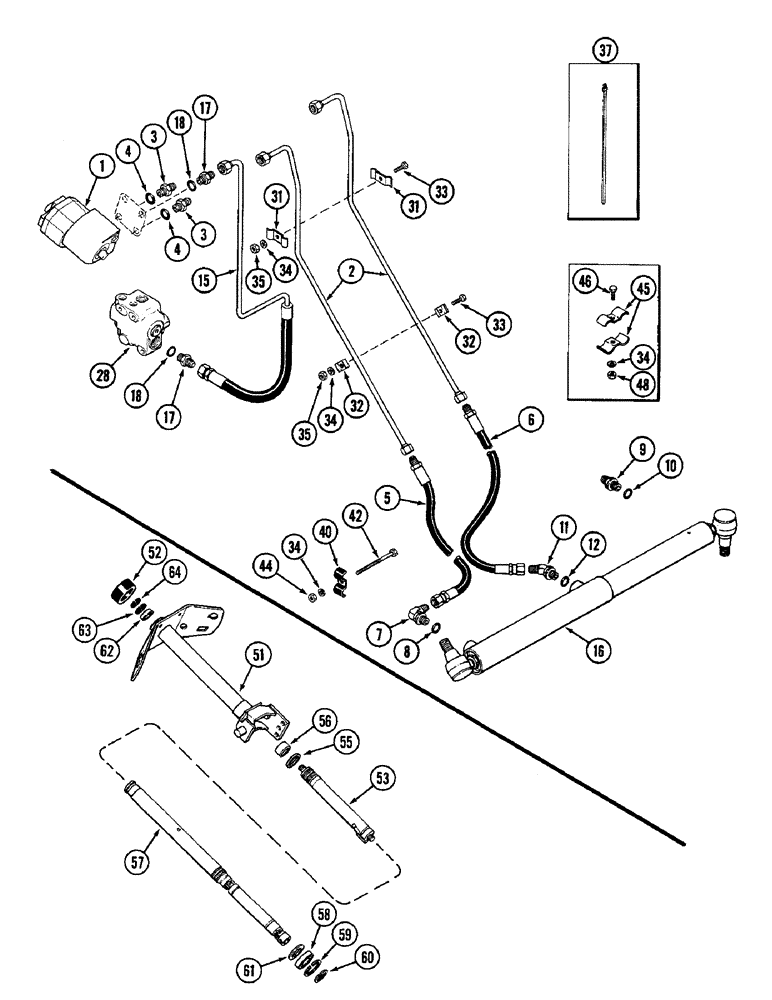

Схема запчастей Case IH 2096 - (5-104) - HYDROSTATIC STEERING SYSTEM (05) - STEERING
32
6
34
63
52
16
4
7
37
56
55
5
51
28
61
11
10
59
4
12
1
8
16
46
33
58
18
45
15
53
35
32
17
3
44
62
34
9
34
33
42
60
35
17
48
31
31
40
3
57
34
64
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering, see Figure 5-108

1шт.

2

A167050

TUBE

ASSEMBLY - steering

2шт.

3

A149481

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch NF thread, Includes: Ref. 4

2шт.

5

A176983

HOSE,9.65 mm ID x 1000.00 mm, SAE 100R1, SAE J343, SAE J517

right turn steering, standard wheel base 9.65 mm ID x 1000.00 mm, SAE 100R1, SAE J343, SAE J517

1шт.

5

A167053

HOSE

- right turn steering, long wheel base

1шт.

5

A176983

HOSE,9.65 mm ID x 1000.00 mm, SAE 100R1, SAE J343, SAE J517

right turn steering, MFD 9.65 mm ID x 1000.00 mm, SAE 100R1, SAE J343, SAE J517

1шт.

6

A167052

HOSE,9.65 mm ID x 1050.00 mm, SAE 100R1

- Left turn steering, Standard wheel base 9.65 mm ID x 1050.00 mm, SAE 100R1

1шт.

6

A167054

HOSE,9.65 mm ID x 1170.00 mm, SAE 100R1

- Left turn steering, Long wheel base 9.65 mm ID x 1170.00 mm, SAE 100R1

1шт.

6

A167984

HOSE - left turn steering, MFD

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, 1/2 tube 3/4 inch thread, Includes: Ref. 8

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4 inch thread (Used with MFD), Incl. Ref 10

1шт.

11

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degree adjustable, 1/2 tube 3/4-16 inch thread (Used with adjustable axle), Incl. Ref 12

1шт.

15

A166836

HYDRAULIC HOSE

HOSE -, Serial Range: pump-valve

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See page 5-110) (For adjustable axle only)

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4 inch thread, Incl. Ref 18

2шт.

28

REF

INSTRUCTION

VALVE - power brake (See page 7-224)

1шт.

31

A176586

CLAMP

- tube (Long)

2шт.

32

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube (Short)

2шт.

33

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 MM

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

35

825-1108

NUT,Hex, M8, Cl 8

2шт.

37

R38237

STRAP

- nylon

2шт.

40

A57740

CLAMP

- tube

1шт.

42

814-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

- hex, M8 x 120 MM

1шт.

44

825-1108

NUT,Hex, M8, Cl 8

1шт.

45

A27440

CLAMP

- hose to hose (Long wheel base)

4шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Long wheel base) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

48

9635082

NUT,5/16" - 18, Gr 5

(Long wheel base) 5/16"-18, G5

2шт.

A169342

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 51 - 61

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE AND BRACKET ASSEMBLY - column, steering column assembly

1шт.

52

A49647

CAP

- column tube, steering column assembly

1шт.

53

A49650

SPACER

SHAFT ASSEMBLY - column, upper, steering column assembly

1шт.

55

A49645

WASHER

- flat, steering column assembly

1шт.

56

A49649

SPACER

BAND - retaining, steering column assembly

1шт.

57

A49651

SHAFT

ASSEMBLY - column, lower, steering column assembly, Includes: Ref. 58

1шт.

58

A49706

BEARING ASSY

BEARING - ball, steering column assembly

1шт.

59

100-28162

SNAP RING,1.625", Int, #162

Ring, Snap, , Stop, brg, steering column assembly 1.625", Int, #162

1шт.

60

100-11100

SNAP RING,#100, Ext

Ring, Snap, , bearing, steering column assembly #100, Ext

1шт.

61

A49707

WASHER

- spacer, steering column assembly

1шт.

62

NSS

NOT SOLD SEPARAT

SPACER - shaft, steering column assembly

1шт.

63

NSS

NOT SOLD SEPARAT

RING - lock, steering column assembly

1шт.

64

NSS

NOT SOLD SEPARAT

RING - snap, steering column assembly

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.

Выбрано товаров: 47
