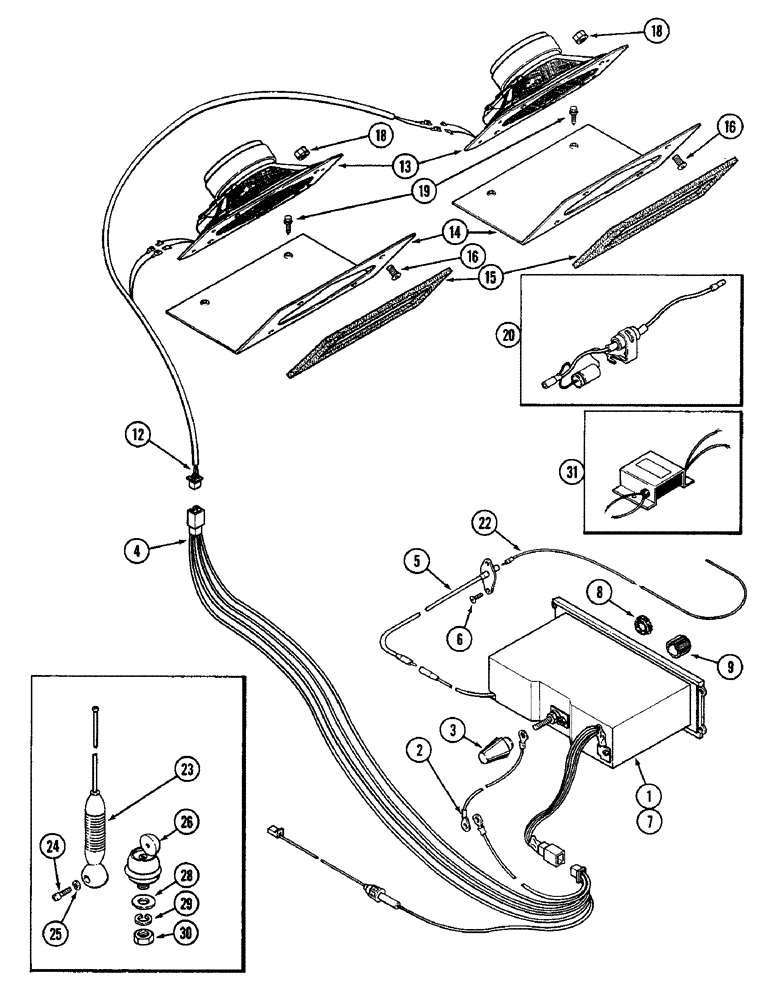

Запчасти Case IH 2096 (4-100) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

A167181

RADIO

KIT - AM-FM stereo (Used with one piece panel), Includes: Ref. 2 - 4, 8 and 9

1шт.

1

A167182

RADIO

KIT - AM-FM with eight track tape player (Used with one piece panel), Includes: Ref. 2 - 4, 8 and 9

1шт.

1

A167183

RADIO

KIT - AM-FM with cassette tape player (Used with one piece panel), Includes: Ref. 2 - 4, 8 and 9

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - ground, radio (Order kit) (Reference no. A165970)

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining (Order kit) (Reference no. A165971)

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire (Order kit) (Reference no. A166846)

1шт.

5

F64799

CABLE

- antenna

1шт.

6

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - round head, no. 10-16 x 1/2 inch

2шт.

7

A180796

RADIO

KIT - AM, Includes: Ref. 2, 3, 4, 8 and 9 (Used with three piece panel)

1шт.

7

A180797

RADIO

KIT - AM-FM stereo, Includes: Ref. 2, 3, 4, 8 and 9

1шт.

7

A180798

RADIO

KIT - AM-FM stereo with cassette tape player and weather ban, Includes: Ref. 2, 3, 4, 8 and 9 (Used with three piece panel)

1шт.

8

A180058

KNOB

- control, volume

1шт.

9

A180059

KNOB

- control, tunning

1шт.

12

F66160

HARNESS

- lead, speaker (Replaces F64727)

1шт.

13

F66124

HARNESS

SPEAKER - radio (Replaces F64847)

2шт.

14

F64667

PLATE

- speaker

2шт.

15

F64793

SEAL

GASKET - sealing, speaker

2шт.

16

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, no. 10-24 x 3/4 inch

8шт.

18

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

19

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, no. 10

4шт.

20

F64184

CAPACITOR

SUPPRESSOR - noise (Mounted on blower motor)

1шт.

22

F64184

CAPACITOR

CABLE - antenna

1шт.

A177631

ANTENNA

KIT - whip, radio (Machinery item), Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

ANTENNA - radio (Reference no. A177752) (Order A177631)

1шт.

24

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted head, no. 10-32 x 5/8 inch

1шт.

25

192-149

WASHER

- lock, 3/16 inch

1шт.

26

NSS

NOT SOLD SEPARAT

BASE - antenna (Reference no. A177751) (Order A177631)

1шт.

28

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm)

1шт.

29

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2 inch

1шт.

30

129-125

NUT,1/2"-20, G5

1шт.

31

A180120

FILTER

- noise

1шт.

A164225

RADIO

- AM-FM, fender mounted with antenna (Not shown)

1шт.
