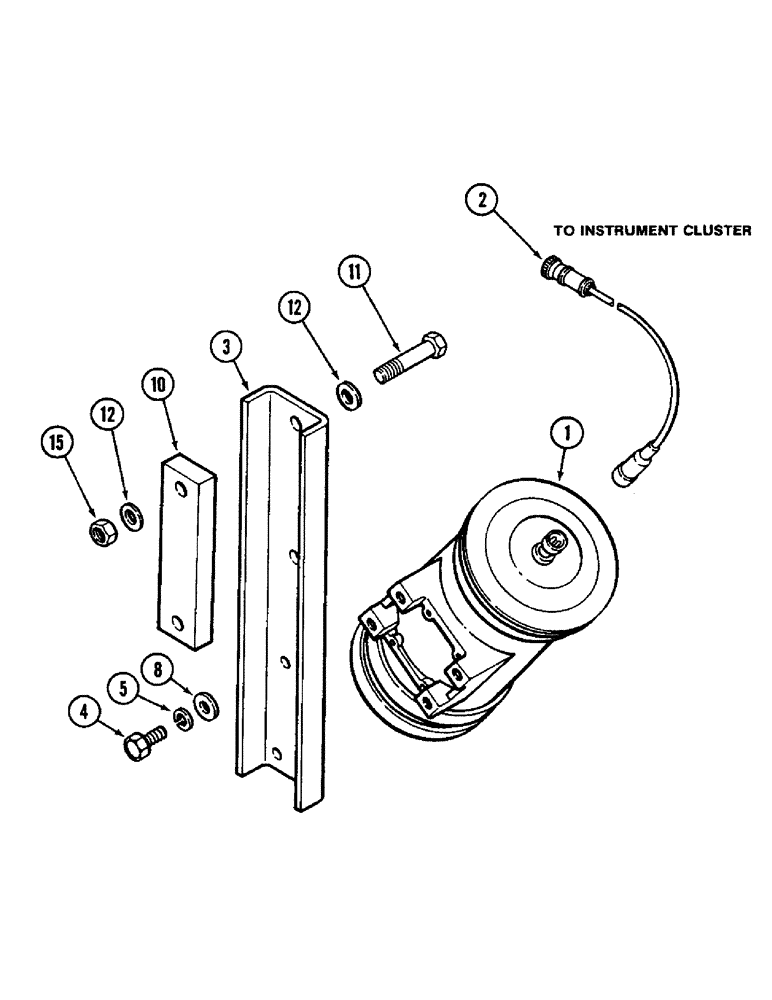

Запчасти Case IH 2096 (4-098) - GROUND SPEED ATTACHMENT (04) - ELECTRICAL SYSTEMS

A67547

GROUND SPEED ATTACHMENT - (Machinery item), Includes: Ref. 1 - 15

1шт.

1

A177139

RELAY

SENSOR - ground

1шт.

2

A167862

HARNESS

- sensor

1шт.

3

A167568

BRACKET

- mounting, sensor

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Not equipped) 3/8"-16, G5

2шт.

10

A167577

PLATE

- clamp, sensor

1шт.

11

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

12

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

6шт.

15

825-1116

NUT,M16, Cl 8

(Not used this application) M16, Cl 8

2шт.
