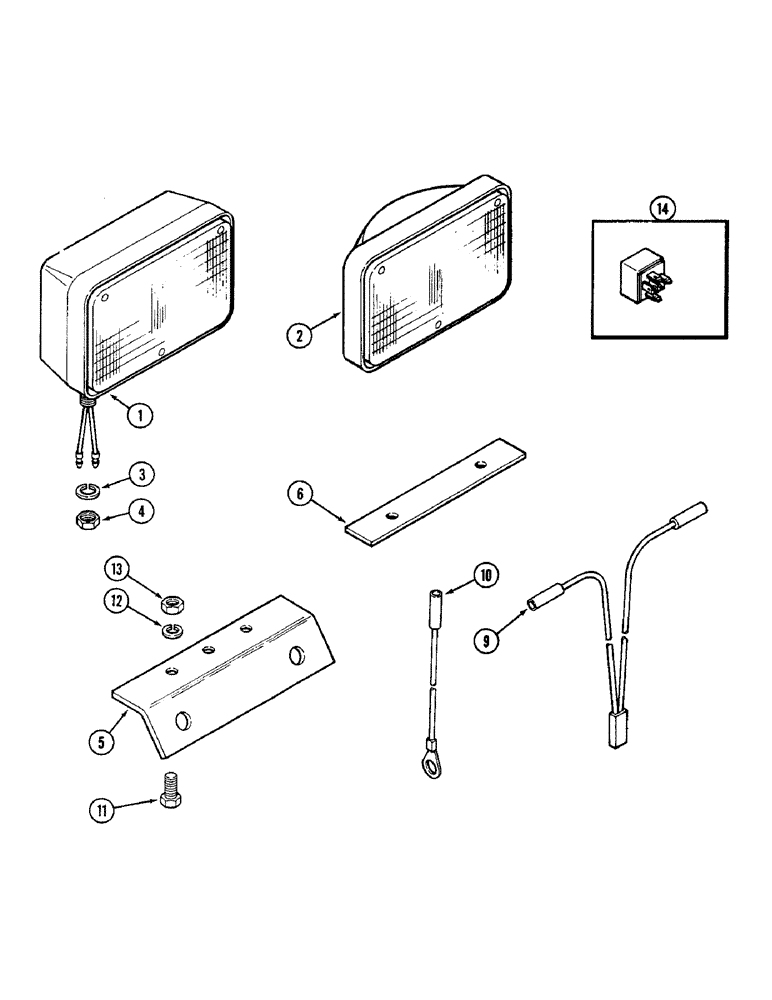

Запчасти Case IH 2096 (4-096) - FLOOD LAMP ATTACHMENT, LOWER FRONT (04) - ELECTRICAL SYSTEMS

A165462

LIGHT

ATTACHMENT - front, lower flood lamp, Includes: Ref. 1 - 14

1шт.

1

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 2

2шт.

2

A48265

LAMP

BULB - sealed beam (Includes screws)

1шт.

3

D37049

WASHER

- mounting

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

A160889

BRACKET

- mounting, lamp

2шт.

6

A22837

BUSHING

SPACER - rear, step

2шт.

9

A147345

HARNESS

- front

1шт.

10

A147343

ELECTRICAL WIRE

WIRE - ground, with 3/8 inch eyelet

2шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

A147176

RELAY

- harness

1шт.
