Запчасти Case IH 2096 (4-092) - HEAD LIGHTS (04) - ELECTRICAL SYSTEMS

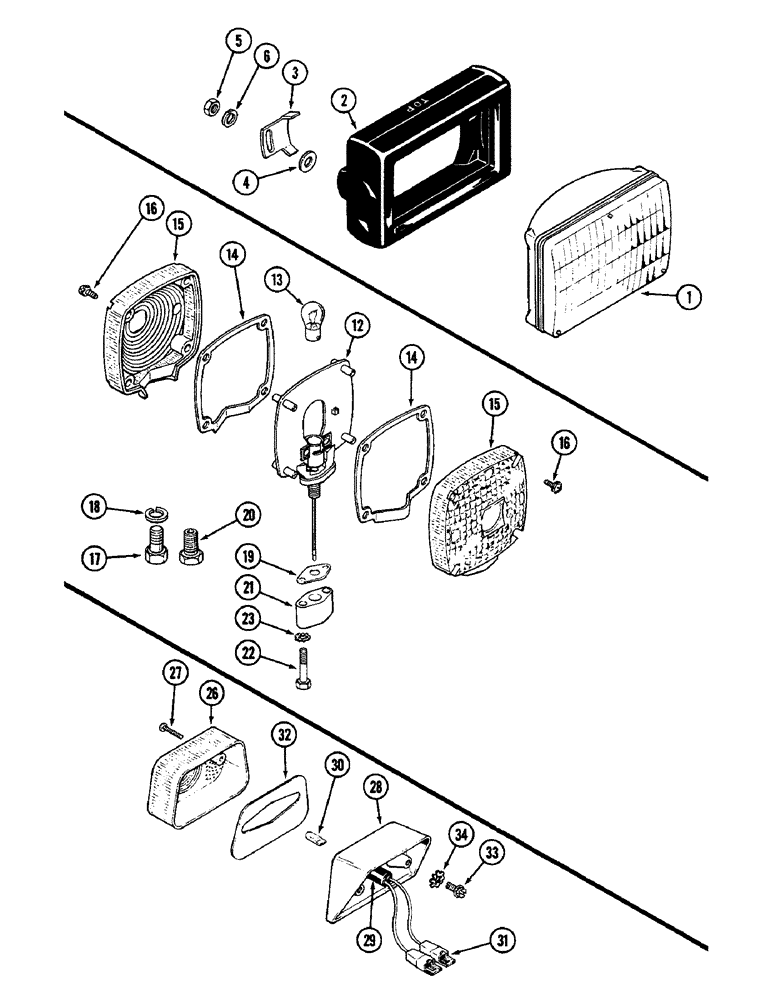

Схема запчастей Case IH 2096 - (4-092) - HEAD LIGHTS (04) - ELECTRICAL SYSTEMS
5
30
1
4
15
23
31
27
13
20
26
16
19
17
21
28
33
6
16
14
29
22
12
2
32
18
34
15
14
3

Артикул

Название

Примечание

Количество

1

A139458

LAMP

LIGHT - head, sealed unit (No. 4652)

2шт.

2

A146354

MOUNTING PARTS

MOUNT - rubber

2шт.

3

A146355

CLAMP

CLIP - mounting

4шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

4шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

A44201

LIGHT ASSY.

KIT - replacement, flasher light, Includes: Ref. 12 - 20 and hex nut

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp, flasher light

1шт.

13

A41264

BULB,#1156, 12V

Lamp, Flasher light #1156, 12V

1шт.

14

A43731

GASKET

- lens, flasher light

2шт.

A44202

KIT

- lens replacement, flasher light, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - lamp, flasher light, upper front and rear and fender mounted

2шт.

16

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - round head Phillips, no. 8-32 x 3/4 inch, flasher light, upper front and rear and fender mounted lamps

8шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Used for rear fender mount), flasher light, upper front mounted lamps Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Used for rear fender mount), flasher light, upper front mounted lamps 1/4"

2шт.

19

F63435

GASKET

- base, lamp, flasher light, upper front and rear and fender mounted

1шт.

20

A45118

STUD

- mounting (Used for rear fender mount), flasher light, upper front and rear and fender mounted lamps

1шт.

129-125

NUT,1/2"-20, G5

(Used for rear fender mount), flasher light, upper front mounted lamps 1/2"-20, G5

1шт.

95-8

WASHER,1/2"

flat (Used for rear fender mount), flasher light, upper front mounted lamps 1/2"

1шт.

21

F64683

SPACER

- mounting, lamp, flasher light, upper front and rear and fender

2шт.

22

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Flasher light, upper front and rear and fender mounted lamps

4шт.

23

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external/internal lock, 1/4 inch, flasher light, upper front and rear and fender mounted lamps

4шт.

A143925

LAMP

TAIL LIGHT ASSEMBLY - rear, upper front and fender mounted lamps, Includes: Ref. 26 - 32

2шт.

26

A47056

LENS

- red, tail light, upper front and rear and fender mounted lamps

1шт.

27

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head slotted, no. 8-18 x 1 inch, tail light, upper front and rear and fender mounted lamps

2шт.

28

A47052

BASE

- lamp, tail light, upper front and rear and fender mounted lamps

1шт.

29

A47054

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - bulb (Includes terminal), tail light, upper front and rear and fender mounted lamps

1шт.

30

D71346

TAIL LAMP,12V

BULB - lamp (No. 168), tail light, upper front and rear and fender mounted

1шт.

31

223-166

CONNECTOR, ELEC

CONNECTOR - body, tail light, upper front and rear and fender mounted lamps

2шт.

32

A47055

GASKET

- tail light, upper front and rear and fender mounted lamps

1шт.

33

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - hex self-tapping, 1/4 x 5/8 inch, tail light, upper front and rear and fender mounted lamps

4шт.

34

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch, tail light, upper front and rear and fender mounted lamps

4шт.

Выбрано товаров: 32
