Запчасти Case IH 2096 (4-088) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

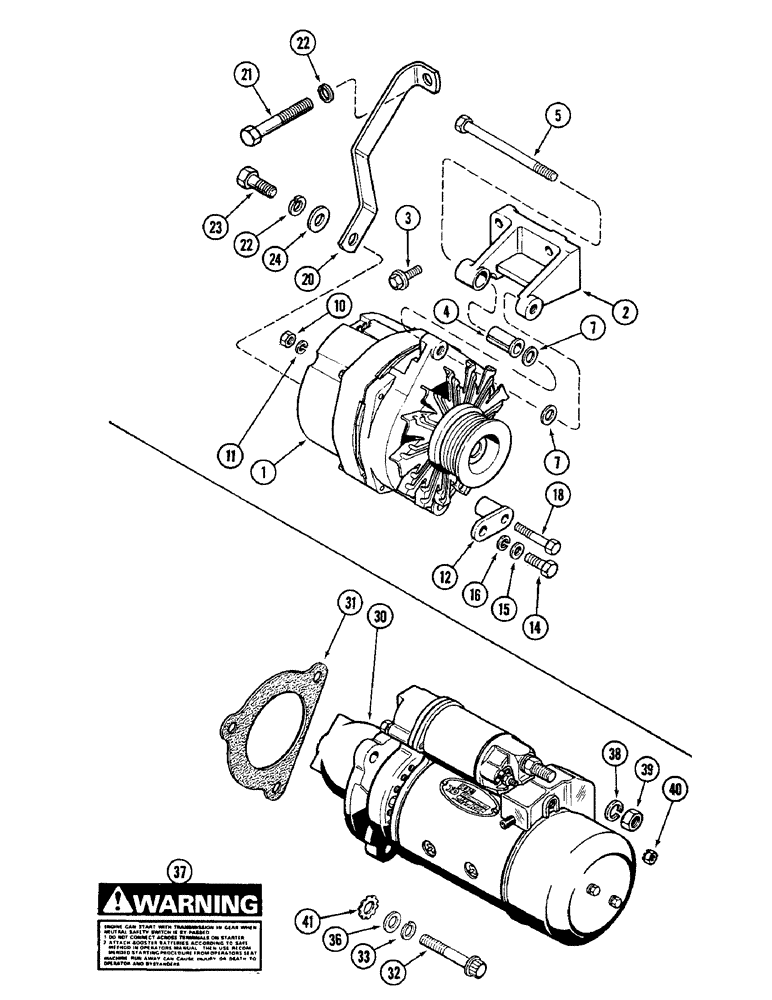

Схема запчастей Case IH 2096 - (4-088) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
30
39
11
36
38
10
40
14
37
15
22
7
22
2
32
24
41
12
16
7
20
1
31
5
3
21
33
4
18
23

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, see Figure 4-090

1шт.

2

J908774

SUPPORT

- alternator (Replaces AJ903086)

1шт.

3

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flanged, M8 x 25 MM

3шт.

4

J902469

SPACER

- alternator mounting

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- Hex, M10 x 100, 8.8

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

10

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

12

J903922

PLATE

BRACE - alternator

1шт.

14

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, M10

1шт.

18

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

20

A180653

BRACKET

BRACE - rear, alternator

1шт.

21

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, M10 x 70 MM

1шт.

22

892-1110

LOCK WASHER,M10

WASHER - lock, M10

2шт.

23

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

24

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

1шт.

30

REF

INSTRUCTION

STARTER ASSEMBLY, see Figure 4-084, mounting

1шт.

31

A27933

GASKET

- mounting, starter

1шт.

32

A177921

BOLT,12 Pt Hd, M12 x 1.75 x 50mm, Gr 8.8

- 12 point flanged Polylock, starter mounting

3шт.

33

892-1112

LOCK WASHER,M12

WASHER - lock, , starter mounting M12

3шт.

36

A75865

WASHER

- starter mounting

3шт.

37

321-3709

DECAL

- warning (On starter), mounting

1шт.

38

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Starter mounting 1/2"

1шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

Starter mounting 1/2"-13, G5

1шт.

40

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10 NF, starter mounting

1шт.

41

A34650

LOCK WASHER

- external lock, starter mounting

1шт.

Выбрано товаров: 28
