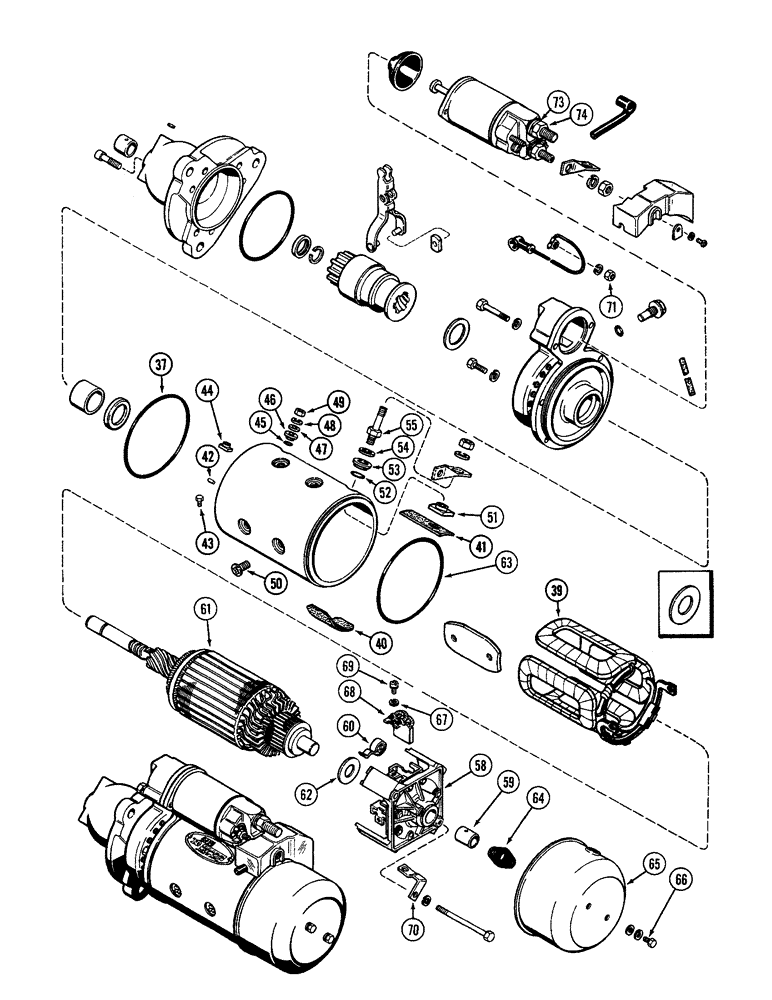

Запчасти Case IH 2096 (4-086) - A162469 STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS

A162469

STARTING MOTOR

STARTER ASSEMBLY, Includes: Ref. 37 - 74 in this figure and parts in Figure 4-084

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

37

A47820

O-RING

O-RING - yoke to center bearing

1шт.

A47821

YOKE

UNIVERSAL JOINT YOKE YOKE ASSEMBLY - field coil, Includes: Ref. 39 - 55

1шт.

39

A47822

COIL

COIL ASSEMBLY - field

1шт.

40

A47833

INSULATOR

INSULATOR - field

1шт.

41

A47832

INSULATOR

INSUALTOR - field

1шт.

42

A47824

PIN

PIN - dowel, yoke

1шт.

43

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

BOLT - hex, M5 x 10 MM

1шт.

44

A47825

BUSHING

BUSHING - terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

BUSHING - terminal insulating, outer

1шт.

47

195-513

WASHER,#10

WASHER - flat, 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 MM)

1шт.

48

892-1105

LOCK WASHER,M5

WASHER - lock, M5

2шт.

49

825-1105

NUT,M5, Cl 8

NUT - hex, M5

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

SCREW - flat head, M10 x 20 MM

8шт.

51

A47829

BUSHING

BUSHING - terminal insulating, inner

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

BUSHING - terminal insulating, outer

1шт.

54

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

1шт.

55

A47828

BOLT

BOLT - terminal

1шт.

58

A47814

FRAME

FRAME ASSEMBLY - end, commutator, Includes: Ref. 59 and 60

1шт.

59

A47784

BUSHING

BUSHING - end frame, commutator

1шт.

60

A47815

SPRING

SPRING - brush

4шт.

61

A47812

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

62

A47813

WASHER

WASHER - end, armature

1шт.

63

39738

O-RING,4.609" ID x 0.139" Width

O-RING - end cover

1шт.

64

A47835

GASKET

GASKET - end cover

1шт.

65

A47834

COVER

COVER - end, starter

1шт.

66

814-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

BOLT - hex, M5 x 10 MM

2шт.

67

892-1106

LOCK WASHER,M6

LOCK WASHER, M6

2шт.

68

A47817

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

SCREW - slotted, M5 x 12 MM

4шт.

70

A47818

CONNECTOR, ELEC

CONNECTOR CONNECTOR - brush

2шт.

71

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, Jam, 3/8"-16, G5

1шт.

73

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

74

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
