Запчасти Case IH 2096 (4-078) - SOLENOID AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

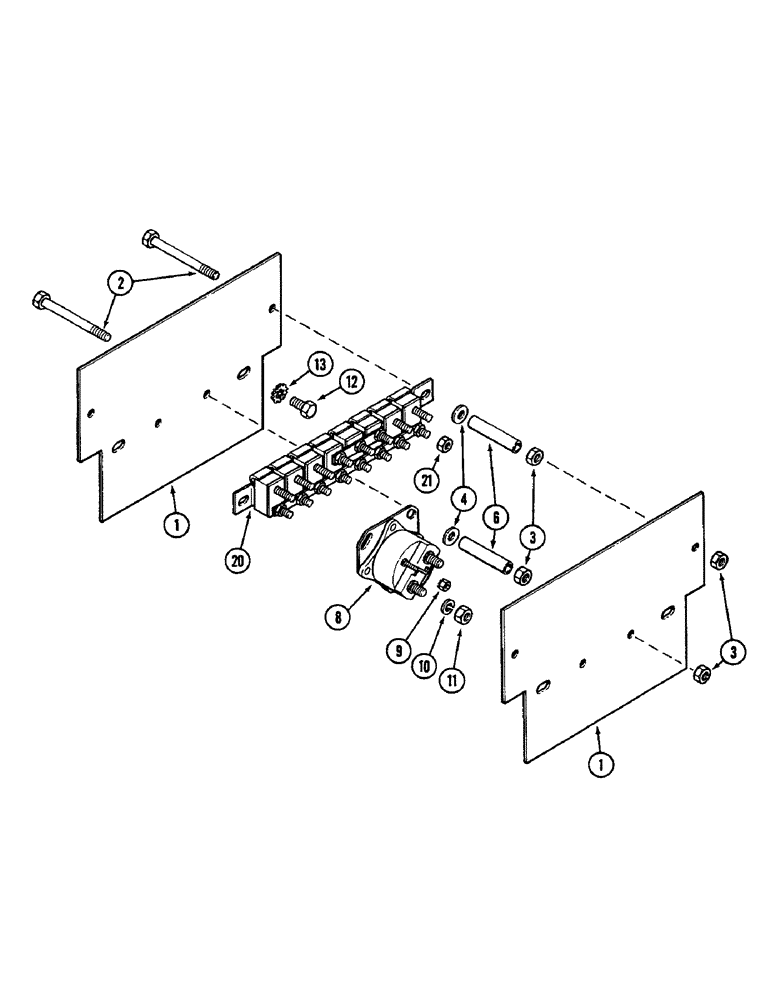

Схема запчастей Case IH 2096 - (4-078) - SOLENOID AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS
1
11
10
2
20
8
9
13
21
1
3
12
3
4
6

Артикул

Название

Примечание

Количество

1

A167522

PLATE

- solenoid and circuit breaker

2шт.

2

113-28

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

4

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

4шт.

6

R25287

TUBE,0.375" OD x 2.12" L

SPACER - cover to plate

4шт.

8

A39079

SOLENOID

- ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10-32

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

13

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

20

A165723

BREAKER

ASSEMBLY - circuit

1шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - Esna hex lock, no. 10-32

7шт.

Выбрано товаров: 13
