Запчасти Case IH 2096 (4-068) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

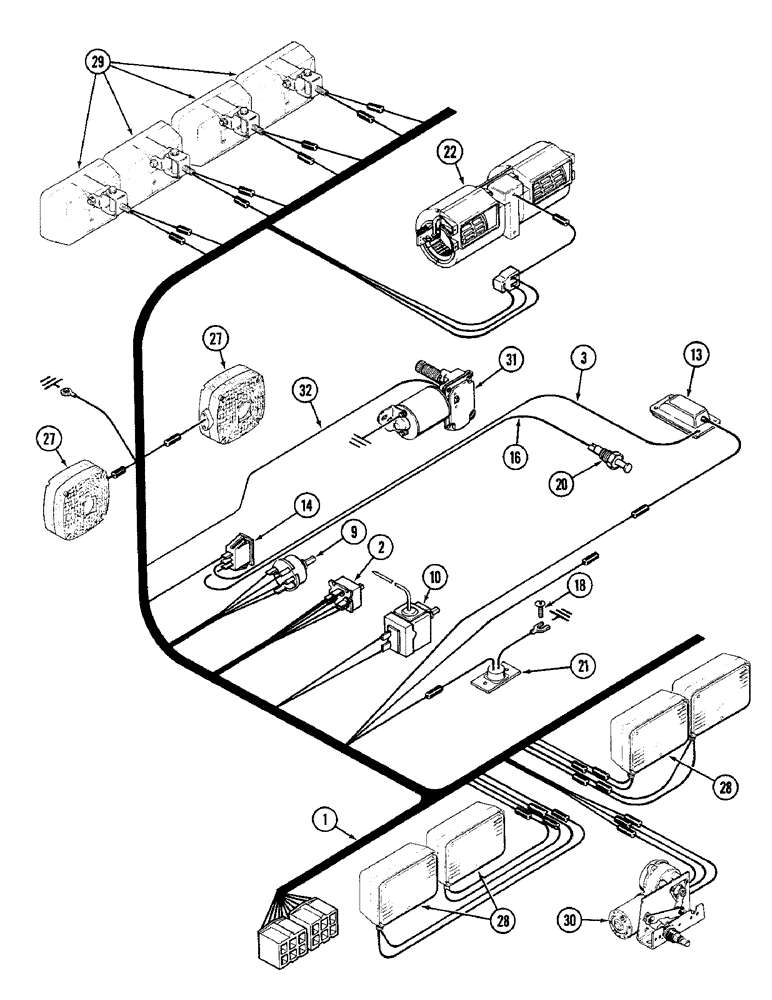

Схема запчастей Case IH 2096 - (4-068) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS
28
22
21
2
1
14
32
31
27
16
29
28
27
9
30
3
18
20
13
10

Артикул

Название

Примечание

Количество

1

F66064

HARNESS

ASSEMBLY - headliner wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower, see Figure 9-430

1шт.

3

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

9

REF

INSTRUCTION

SWITCH - wiper, see Figure 9-430

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning, see Figure 9-430

1шт.

13

REF

INSTRUCTION

LAMP - dome, see Figure 9-428

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp, see Figure 9-430

1шт.

16

F64127

ELECTRICAL WIRE

WIRE - switch to door switch, white 70 inch (1778 MM)

1шт.

18

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping Phillips pan head, no. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - console, see Figure 9-428

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - cab air, see Figure 9-434

1шт.

27

REF

INSTRUCTION

LIGHT - flasher, see Figure 4-092

2шт.

28

REF

INSTRUCTION

LAMP - front flood, see Figure 4-094

1шт.

29

REF

INSTRUCTION

LAMP - rear flood, see Figure 4-094

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - windshield, see Figure 9-450

1шт.

31

REF

INSTRUCTION

WIPER ASSEMBLY - rear window, see Figure 9-454

1шт.

32

REF

INSTRUCTION

WIRE ASSEMBLY - (See page 9-452)

1шт.

Выбрано товаров: 18
