(4-066) - FORWARD COMPONENT HARNESS

Запчасти Case IH 2096 (4-066) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

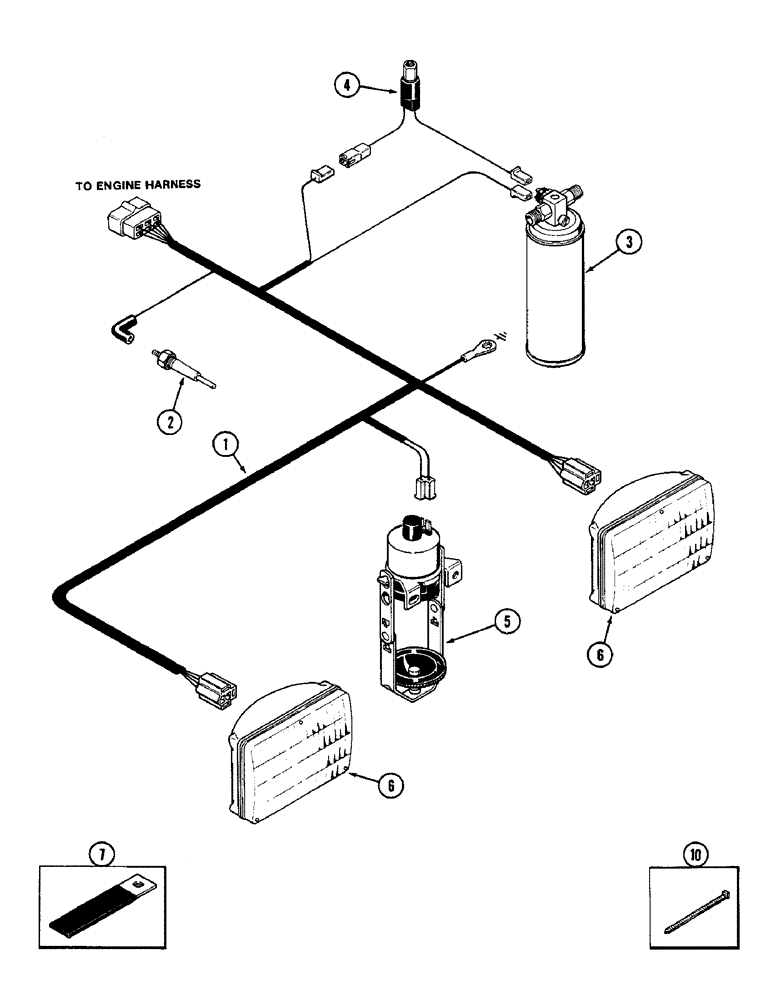

Схема запчастей Case IH 2096 - (4-066) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
1
6
2
4
3
7
10
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A163110

HARNESS

- forward

1шт.

2

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning, see Figure 9-444

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning cutout, see Figure 9-444

1шт.

5

A143381

SOLENOID

- ether start, see Figure 2-010

1шт.

6

A139458

LAMP

LIGHT - head, see Figure 4-092

2шт.

7

A149624

CLIP

- wire

3шт.

10

R38237

STRAP

- nylon, harness

7шт.
