(4-062) - REAR COMPONENT HARNESS

Запчасти Case IH 2096 (4-062) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

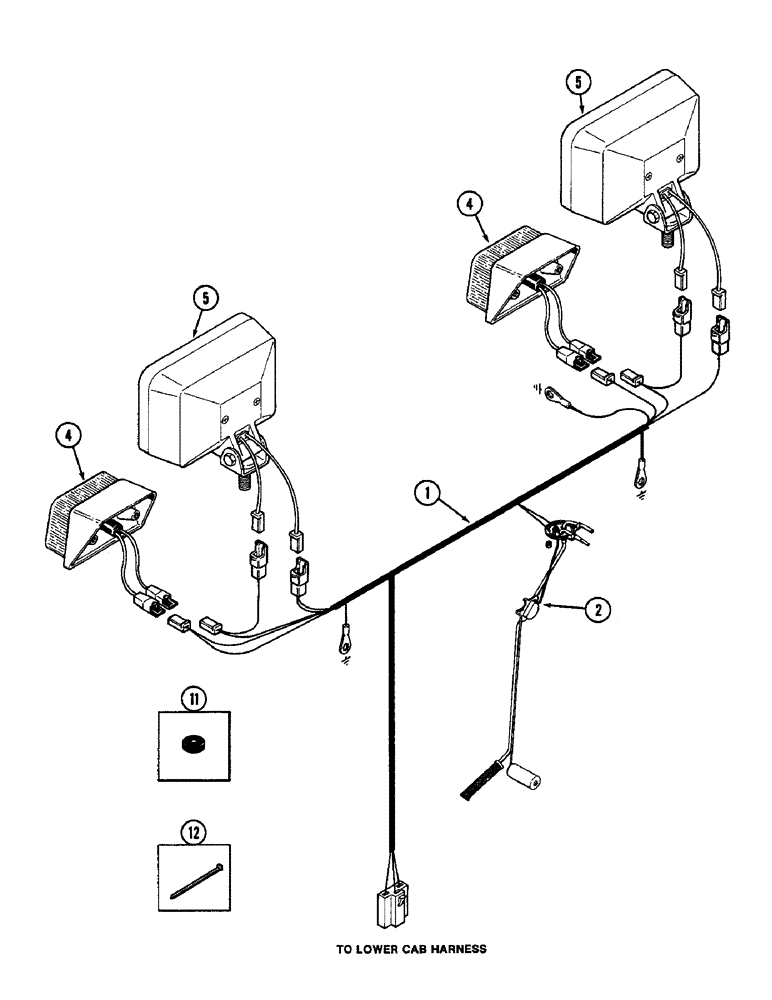

Схема запчастей Case IH 2096 - (4-062) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
4
11
4
5
1
2
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A167264

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level, see Figure 3-052

1шт.

4

A143925

LAMP

TAIL LIGHT ASSEMBLY - tail, see Figure 4-092

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, black, see Figure 4-096

2шт.

5

REF

INSTRUCTION

LAMP - rear flood, white (Without cab), see Figure 4-094

1шт.

11

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear flood lamp wire

2шт.

12

R38237

STRAP

- nylon tie

2шт.
