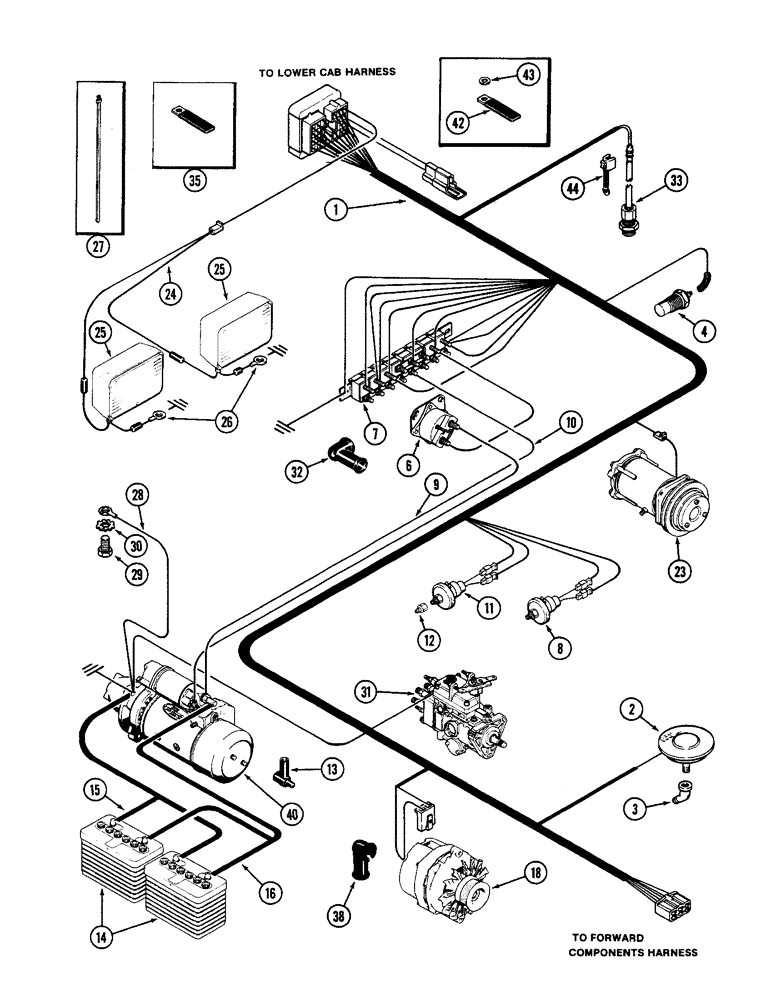

Запчасти Case IH 2096 (4-058) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A177094

HARNESS

- engine

1шт.

2

A166778

SWITCH

- restriction, air cleaner

1шт.

3

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street, 1/8 inch PT

1шт.

4

A176566

TRANSMITTER

SENDER - engine water temperature

1шт.

6

A39079

SOLENOID

- ignition, see Figure 4-078

1шт.

7

A165723

BREAKER

- circuit, 20 and 150 ampere, see Figure 4-078

1шт.

8

A177628

SWITCH

- engine oil pressure, 8 PSI (41 kPa) (Replaces A167996) (15 PSI)

1шт.

9

A167566

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

10

A167567

ELECTRICAL WIRE

WIRE - starter to circuit breaker

1шт.

11

A177629

SWITCH

- engine oil pressure, 22 PSI (147 kPa) (Replaces A167644) (40 PSI)

1шт.

12

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

- switch, 1/8 x 1/8 inch PT

1шт.

13

A181302

BOOT

COVER - insulator, starter terminal (Replaces A153796)

1шт.

14

REF

INSTRUCTION

BATTERY - 12 volt low maintenance, see Figure 4-080

2шт.

15

A162285

CABLE

- battery, negative, see Figure 4-080 (Replaces A165749)

1шт.

16

A180133

CABLE

- battery, positive, see Figure 4-080 (Replaces A165748)

1шт.

18

REF

INSTRUCTION

ALTERNATOR, see Figure 4-090

1шт.

23

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor, see Figure 9-448

1шт.

24

A147345

HARNESS

- front flood lamp

1шт.

25

REF

INSTRUCTION

LAMP - lower front, see Figure 4-096

2шт.

26

A147343

ELECTRICAL WIRE

WIRE - front flood ground

2шт.

27

R38237

STRAP

- nylon, tie

7шт.

28

A165747

CABLE

- ground, cab

1шт.

29

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

30

193-72

LOCK WASHER

- internal and external lock, 3/8 inch

1шт.

31

J904630

SOLENOID

- fuel shutoff

1шт.

32

A21753

CAP

NIPPLE - wire terminal

2шт.

33

A162939

MAGNET

SENSOR - magnetic, engine RPM

1шт.

35

A149624

CLIP

- harness and hoses

1шт.

38

A21753

CAP

COVER - terminal, alternator

1шт.

40

REF

INSTRUCTION

STARTER, see Figure 4-084

1шт.

42

NLS

NO LONGER SERVICED

- harness

1шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

44

A169696

CLAMP

- connector

1шт.
