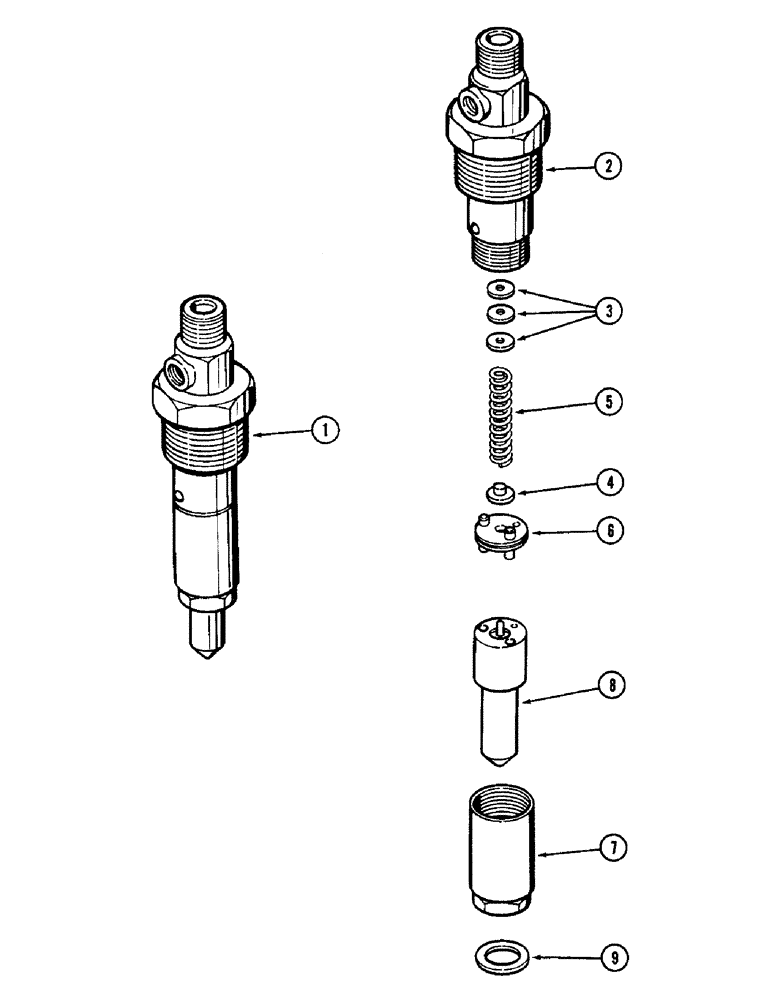

Запчасти Case IH 2096 (3-048) - FUEL INJECTION NOZZLE, 6TA-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

JR903383

REMAN-INJECT NOZZLE

NOZZLE ASSEMBLY - fuel injection (Remanufactured) (North America only)

6шт.

1

JC903383

CORE

RETURN NUMBER - nozzle (Use this number when returning nozzle for credit)

6шт.

1

J903383

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection (Bosch) (New), Includes: Ref. 2 - 8

6шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - injector (Order J903383)

1шт.

A48186

KIT

SHIM KIT - nozzle opening pressure, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.00 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.04 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.08 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.20 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.24 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.28 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.40 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.44 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.48 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.60 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.64 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.68 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.80 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.84 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.88 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 MM (5 in kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 MM (5 in kit)

1шт.

4

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

5

J905152

SPRING

- nozzle pressure

1шт.

6

J905154

PLATE

VALVE STOP ASSEMBLY - nozzle

1шт.

7

A48201

NUT

CAP NUT - nozzle end

1шт.

8

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector (Order J903383)

1шт.

9

J900808

SEAL

GASKET - nozzle

6шт.

Whenever a nozzle is removed from the cylinder head, J900808 gasket must be replaced before nozzle is installed in cylinder head.

1шт.
