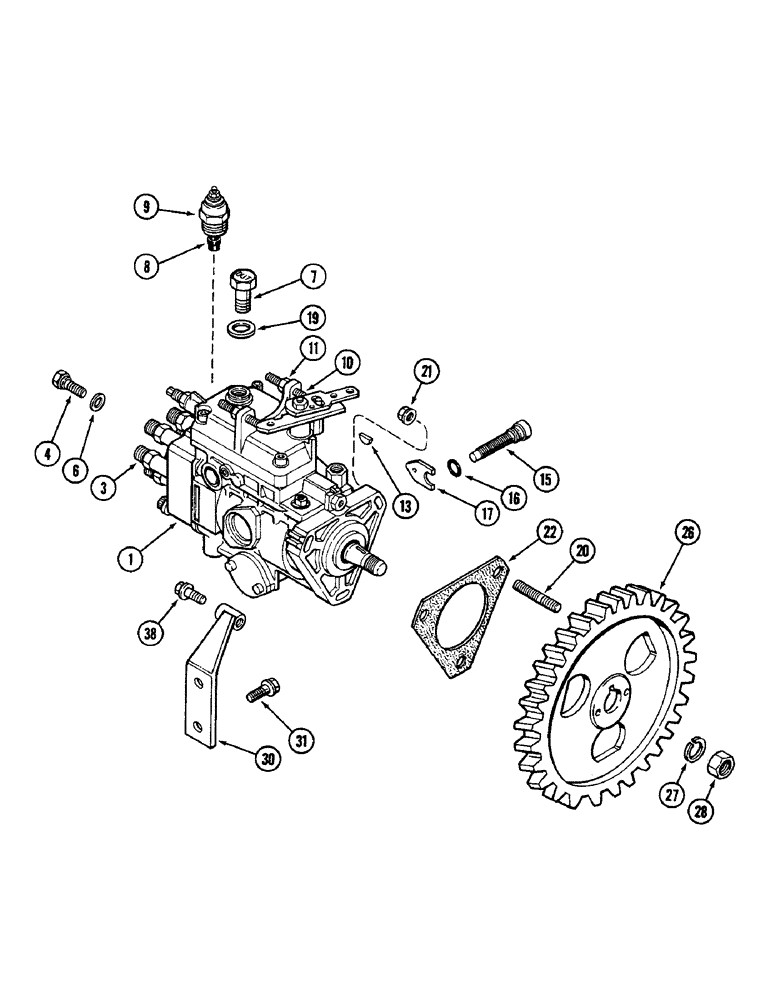

Запчасти Case IH 2096 (3-046) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

J904544

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (New), Includes: Ref. 3 - 19

1шт.

1a

JR904544

PUMP

ASSEMBLY - fuel injection (Remanufactured) (North America only), not illustrated

1шт.

1b

JC904544

PUMP

RETURN NUMBER - injection pump (Use this number for intransit care for credit), not illustrated

1шт.

3

J903571

ADAPTER

FITTING - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

- vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - banjo, over flow

1шт.

8

J903577

SEAL

- solenoid

1шт.

9

J903575

SOLENOID

ASSEMBLY - shut-down, 12 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - stop, low idle

1шт.

11

J904783

NUT

- idle screw

1шт.

13

J902332

KEY

- retainer, pump gear

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- lock, timing

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

- lock screw, timing

1шт.

17

J904786

PLATE

- lock, timing

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - over flow screw

1шт.

20

J902501

STUD

- pump mounting, M8 x 1 x 48 MM

3шт.

21

J900589

NUT

- flanged hex, M8

3шт.

22

J905685

GASKET

- pump mounting

1шт.

26

J902236

GEAR

- drive, pump

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

- hex, M14

1шт.

30

J905313

LEVER

BRACE - injection pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- flanged hex, M8 x 20 MM

3шт.
