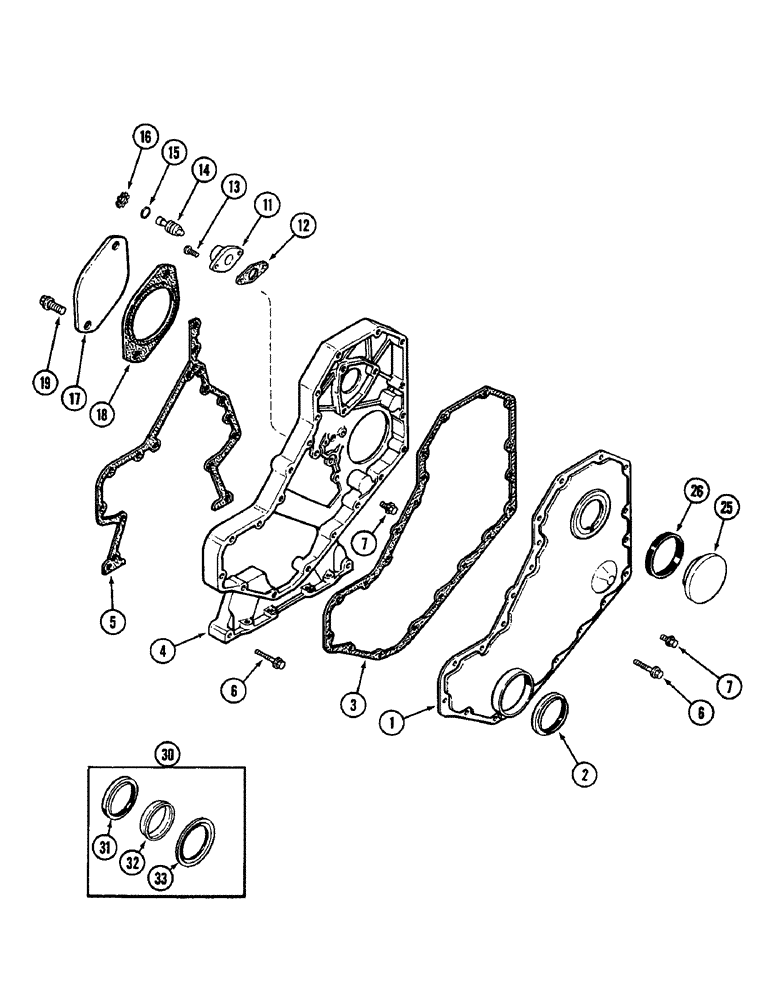

Запчасти Case IH 2096 (3-040) - FRONT GEAR COVER, 6TA-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order ref 30), Includes: Ref. 3

1шт.

3

J905143

GASKET

- cover, front

1шт.

4

J905731

HOUSING

- timing gear

1шт.

5

J907836

GASKET

- housing, gear (Replaces J902364)

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex flanged, M8 x 50 MM

11шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

11

J905933

HOUSING

- timing pin

1шт.

12

J905595

GASKET

- housing, pin

1шт.

13

J902630

BOLT,Rd, M5 x 0.8 x 17mm

SCREW - round head, M5 x 17 MM

2шт.

14

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

15

J903927

O-RING,15.6 mm ID

- sealing

1шт.

16

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, 0.875", Int, #87

1шт.

17

A77440

PLATE

- cover, access

1шт.

18

A77441

GASKET

- plate, cover

1шт.

19

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flanged, M12 x 25 MM

2шт.

25

J903463

PLUG,M63 x 5

- access, front

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front

1шт.

30

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Reference no. J900709)

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.
