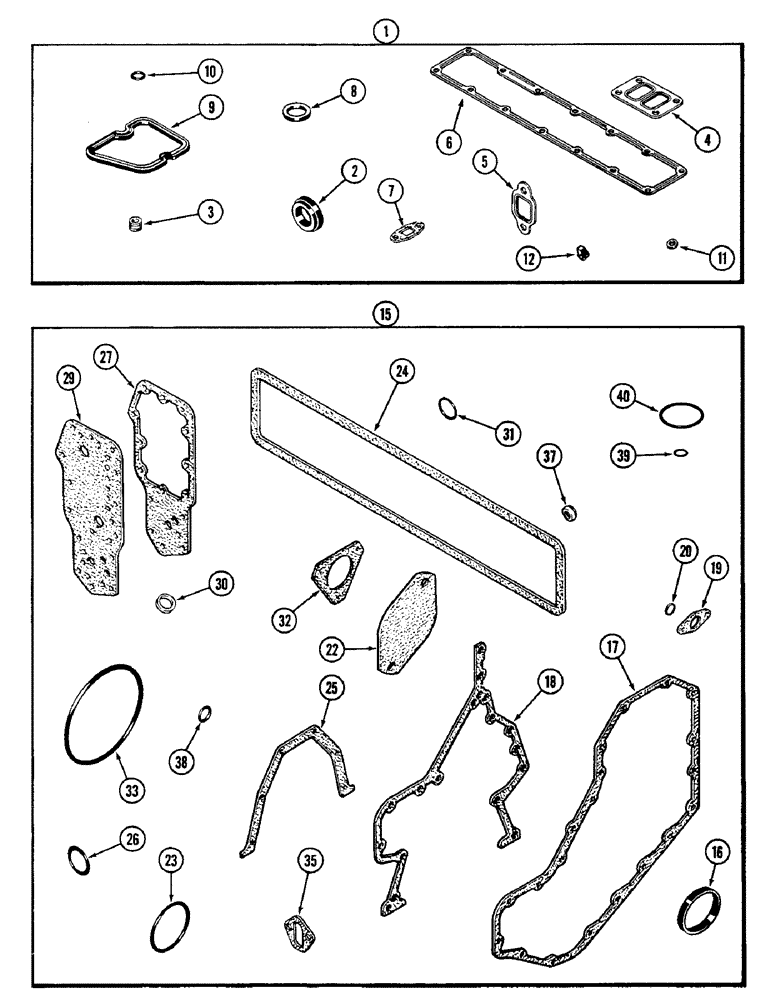

Запчасти Case IH 2096 (2-038) - ENGINE GASKET KITS, 6TA-590 DIESEL ENGINE, VALVE GRIND (02) - ENGINE

1

A77493

GASKET KIT

- valve grind, Includes: Ref. 2 - 10

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket in Figure 2-020.

1шт.

2

J903301

GASKET

- thermostat

1шт.

3

J901097

SEAL

- valve stem

12шт.

4

J901356

GASKET,0.5mm Thk

- turbocharger

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J907036

GASKET

- intake manifold

1шт.

7

J901805

GASKET

- drain tube, turbocharger

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

RING - seal, oil fill cap

1шт.

9

J902666

GASKET

- cover, valve rocker

6шт.

10

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - o-ring, rocker cover bolt

6шт.

11

J900808

SEAL

- injector

4шт.

12

J903380

SEAL

- connector, banjo

4шт.

15

A77491

GASKET KIT

- engine block, cylinder, Includes: Ref. 16 - 40

1шт.

For complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit, (1) oil pan kit Figure 2-036, front and rear crankshaft seal kit Figure 2-030 and required cylinder head gasket Figure 2-020.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, turbocharger, cylinder block

1шт.

17

J905143

GASKET

- cover, timing gear, cylinder block

1шт.

18

J907836

GASKET

- housing, timing gear, cylinder block

1шт.

19

J905595

GASKET

- housing, timing pin, cylinder block

1шт.

20

J903927

O-RING,15.6 mm ID

- timing pin, cylinder block

1шт.

22

A77441

GASKET

- cover, accessory drive, cylinder block

1шт.

23

A30395

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

- water pump, cylinder block

1шт.

24

J904776

GASKET

- cover, tappet, cylinder block

1шт.

25

J901019

GASKET

- retainer, rear crankshaft seal, cylinder block

1шт.

26

J901467

O-RING,Square, 5.16mm Thk x 50.17mm ID

- inlet, water, cylinder block

1шт.

27

J904427

GASKET

- oil cooler core, cylinder block

1шт.

29

J905589

GASKET

- oil filter head, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, filter head, cylinder block

1шт.

31

J906704

O-RING

- oil filler, engine, cylinder block

1шт.

32

J905685

GASKET

- fuel pump, cylinder block

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- flywheel housing, cylinder block

1шт.

35

J904044

GASKET

- lift pump, fuel, cylinder block

1шт.

37

J900267

SEAL

- cover bolt, tappet, cylinder block

6шт.

38

J904469

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- flywheel housing plug, cylinder block

1шт.

39

J903846

O-RING

- fuel filter stud, 14 MM ID, cylinder block

1шт.

40

J903546

O-RING

- fuel filter head, 17.2 MM ID, cylinder block

1шт.
