Запчасти Case IH 2096 (2-036) - OIL PUMP AND OIL PAN, 6TA-590 DIESEL ENGINE (02) - ENGINE

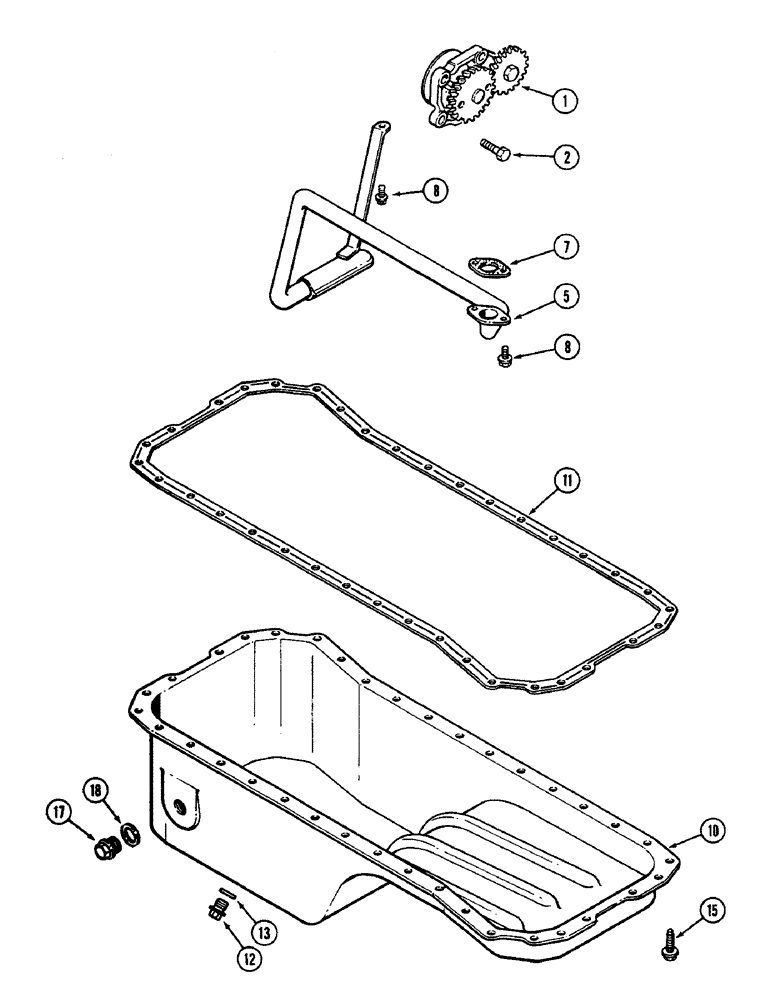

Схема запчастей Case IH 2096 - (2-036) - OIL PUMP AND OIL PAN, 6TA-590 DIESEL ENGINE (02) - ENGINE
11
8
18
10
5
15
8
7
1
17
13
12
2

Артикул

Название

Примечание

Количество

J906414

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine, new

1шт.

1

JR906414

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil, Remanufactured

1шт.

1

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump assembly, Use this number for intransit core for credit

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured ENGINE OIL PUMP - For N.A. only

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

5

J909374

TUBE

TUBE AND SCREEN - oil suction

1шт.

7

J905468

GASKET

GASKET - mounting, tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

3шт.

10

J901288

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

J906028

OIL PAN GASKET SET

GASKET - oil pan, Order P/N A77492

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

12

J900215

PLUG

PLUG - drain oil

1шт.

13

J900216

PACKING RING

WASHER - plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77492

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, M8 x 20.5

36шт.

17

J904386

PLUG

PLUG - heater hole, M18

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - heater plug

1шт.

A77492

GASKET KIT

GASKET KIT - oil pan, Includes : Ref. 7, 11 and 13

1шт.

Выбрано товаров: 20
