Запчасти Case IH 2096 (2-020) - CYLINDER HEAD COVERS, 6TA-590 DIESEL ENGINE (02) - ENGINE

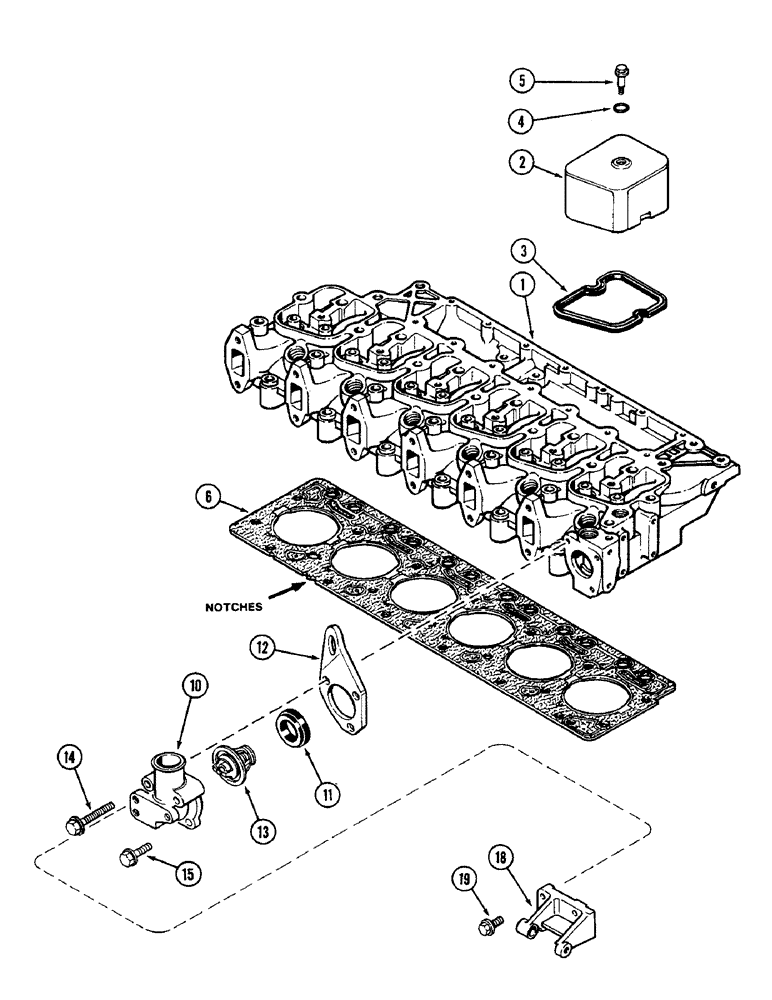

Схема запчастей Case IH 2096 - (2-020) - CYLINDER HEAD COVERS, 6TA-590 DIESEL ENGINE (02) - ENGINE
4
18
2
15
1
12
19
13
10
3
6
14
11
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-022

1шт.

2

J902604

COVER

- rocker, valve

6шт.

3

J902666

GASKET

SEAL - cover, rocker

6шт.

4

J901837

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - o-ring

6шт.

5

J907049

BOLT,Hex

- hex flanged, M8 x 21.25 MM (Replaces J902375)

6шт.

6

J907057

CYLINDER HEAD GASKET

- cylinder head (Standard) (Without notches)

1шт.

6

J907058

GASKET

- cylinder head, 0.040 inch (1 MM) Over bore, 0.010 inch (0.13 MM) Thickness (2 notches)

1шт.

6

J907059

GASKET

- cylinder head, 0.040 inch (1 MM) Over bore, 0.020 inch (0.050 MM) Thickness (3 notches)

1шт.

10

J903756

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- housing, thermostat

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J906700

THERMOSTAT

- water, 95 degrees C (203 degrees F), thermostat and housing

1шт.

13

J906700

THERMOSTAT

- water, 95 degrees C (203 degrees F), thermostat and housing

1шт.

14

J903096

FLANGE BOLT,Hex, M8 x 70mm, Cl 8.8

BOLT - hex flanged, M8 x 70 MM, thermostat and housing

2шт.

15

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - hex flanged, M8 x 35 MM, thermostat and housing

1шт.

18

J908774

SUPPORT

- mounting, alternator (Replaces J903086), thermostat and housing

1шт.

19

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flanged, M8 x 25 MM, thermostat and housing

3шт.

Выбрано товаров: 17
