Запчасти Case IH 2096 (9-458) - FRONT FENDERS, MFD TRACTORS (09) - CHASSIS/ATTACHMENTS

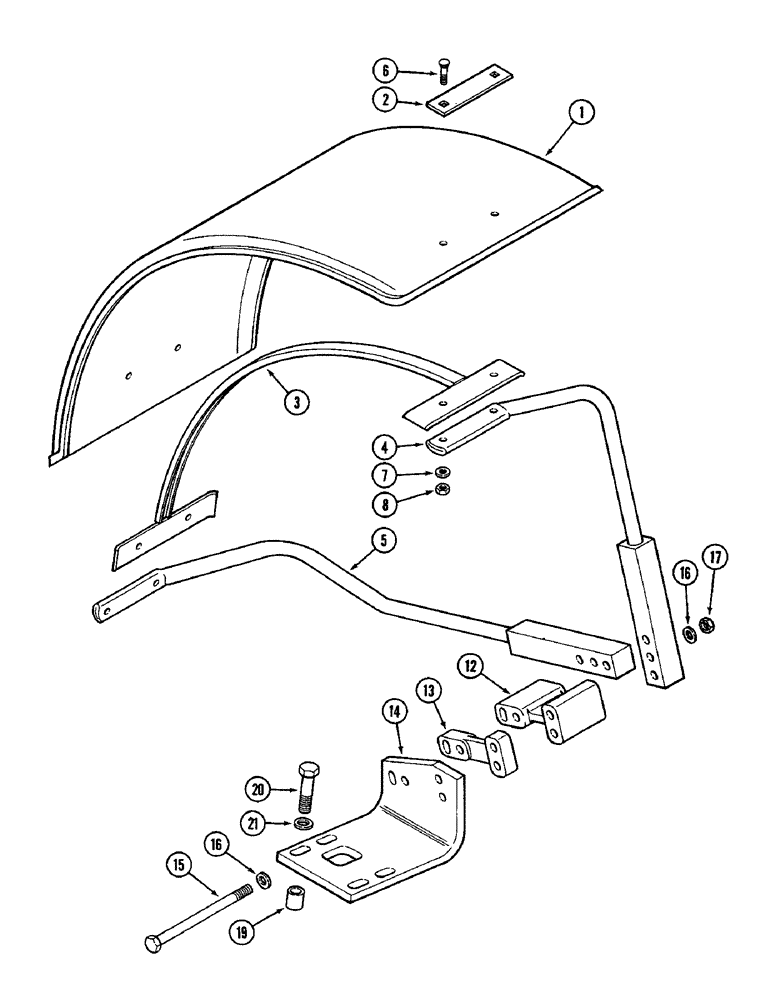

Схема запчастей Case IH 2096 - (9-458) - FRONT FENDERS, MFD TRACTORS (09) - CHASSIS/ATTACHMENTS
8
21
4
17
5
14
16
16
2
12
20
19
1
3
13
6
7
15

Артикул

Название

Примечание

Количество

A181135

FENDER ASSY.

FENDER ATTACHMENT - front, MFD, Includes: Ref. 1 - 21

1шт.

1

A181006

FENDER

- front

2шт.

2

A181125

PLATE

- outer fender retaining

4шт.

3

A181124

CHANNEL

SUPPORT ASSEMBLY - fender

2шт.

4

A181366

BRACE

ASSEMBLY - fender, top right

1шт.

4

A181365

BRACE

ASSEMBLY - fender, top left

1шт.

5

A181368

BRACE

ASSEMBLY - fender, right rear

1шт.

5

A181367

BRACE

ASSEMBLY - fender, left rear

1шт.

6

111-271

BOLT - round head square neck, 3/8 NC x 2 inch

8шт.

7

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

8шт.

8

129-191

NUT,7/16"-14, G5

- hex, 3/8 inch NC

8шт.

12

A181128

SPACER

- fender, Serial Range: brace-bracket

2шт.

13

A181129

SPACER

- fender, bracket

2шт.

14

A181127

PLATE

BRACKET - fender brace mounting, right

1шт.

14

A181126

PLATE

BRACKET - fender brace mounting, left

1шт.

15

113-2257

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

- hex, 1/2 NC x 8-3/4 inch

8шт.

16

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 7/64 inch (13 x 27 x 3 mm)

16шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

19

A180416

SPACER

-, Serial Range: axle-bracket

8шт.

20

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

8шт.

21

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 7/64 inch (17 x 33 x 3 MM)

8шт.

Выбрано товаров: 21
