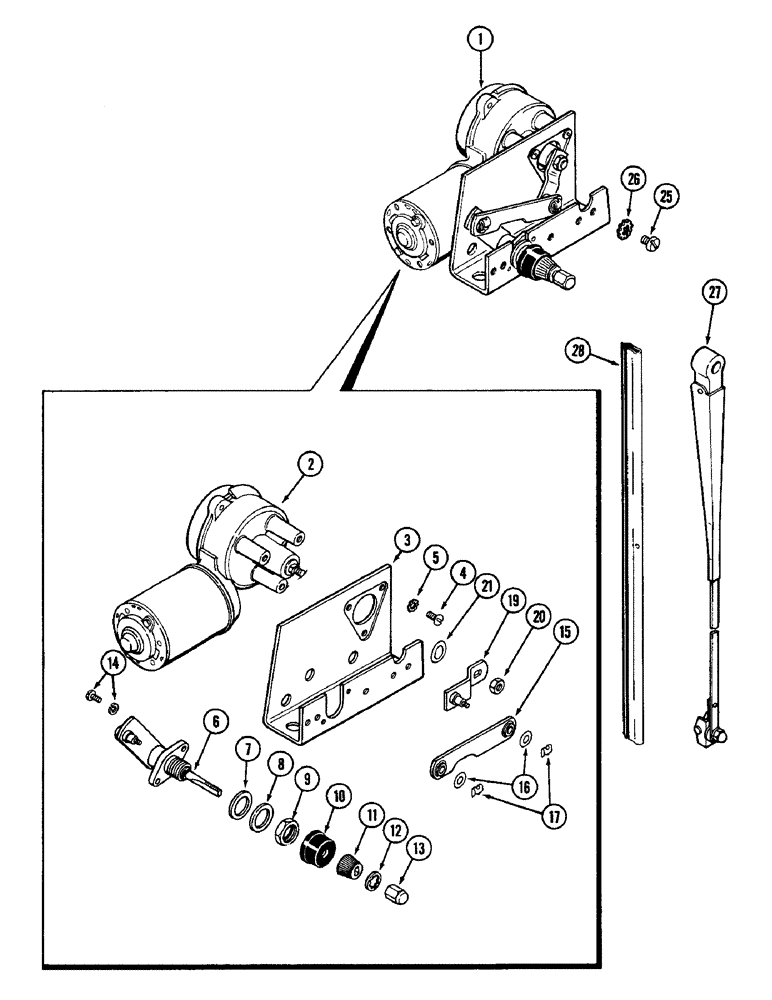

Запчасти Case IH 2096 (9-450) - CAB, WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

1

F96900

MOTOR HOUSING

WIPER ASSEMBLY - windshield (See Figure 9-452), Includes: Ref. 2 - 21

1шт.

1

F96764

WIPER

ASSEMBLY - windshield (Order F96900) (American Bosch), Includes: Ref. 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR - wiper (Order F96900)

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - (Order F96900)

1шт.

4

174-214

SCREW,Sl Rnd Hd, 1/4" - 28 x 5/8"

- round head, 1/4 NF x 5/8 inch

3шт.

5

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

3шт.

D71415

SHAFT

ASSEMBLY - arm, wiper, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT AND PIVOT - arm (Order D71415)

1шт.

7

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

8

D71418

WASHER

- steel

1шт.

9

D71419

NUT

- shaft

1шт.

10

D71420

CAP

BOOT - rubber

1шт.

11

D71421

TOOL

DRIVER - knurled, wiper arm

1шт.

12

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal lock, 5/16 inch

1шт.

13

D71422

NUT

- fastener, arm

1шт.

14

D71416

SCREW

- shaft assembly

2шт.

15

D71427

LINK,85.85mm L

- pivot, Serial Range: motor-shaft

1шт.

16

A22431

WASHER

- clip, link

2шт.

17

D71414

CLIP

- link, drive arm and shaft

2шт.

19

F64210

LEVER

ARM - drive

1шт.

20

F44452

LOCK NUT

- lock, arm to motor shaft

1шт.

21

D71411

WASHER

- spring

1шт.

25

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- mounting, pan head slotted, 1/4 x 3/8 inch

2шт.

26

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external/internal lock, 1/4 inch

2шт.

27

A165060

WIPER ARM

ARM - wiper blade, 18 inch (457 MM) Black

1шт.

28

A165059

WIPER

BLADE - wiper, 20 inch (508 MM) Black

1шт.
