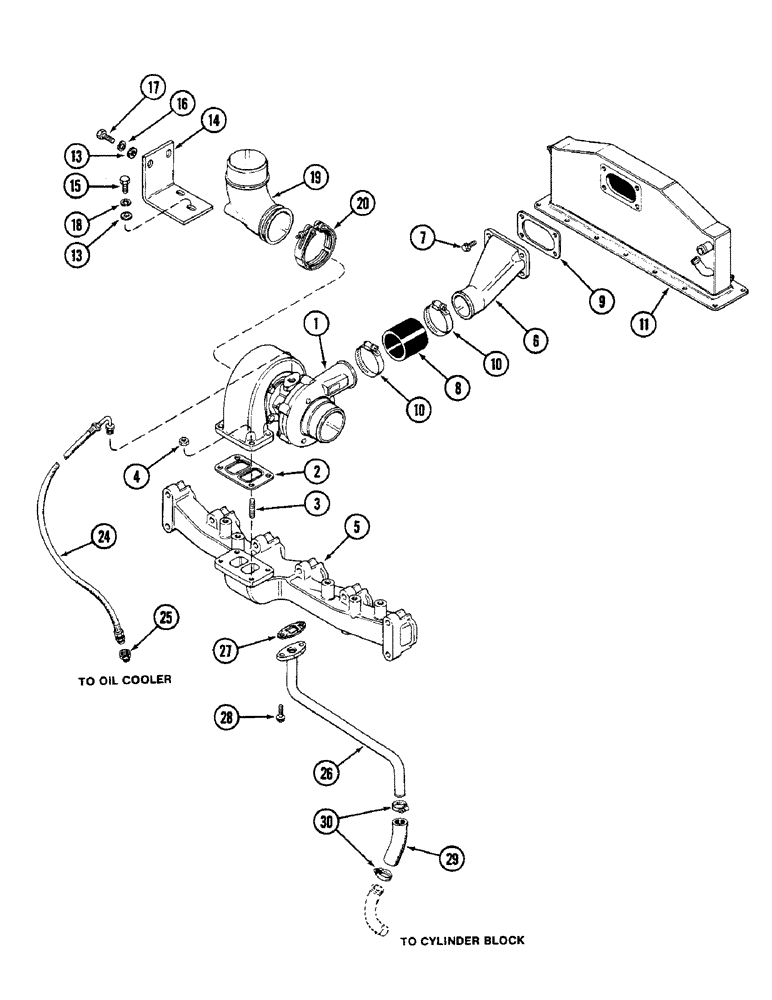

Запчасти Case IH 2096 (2-014) - TURBOCHARGER SYSTEM, 6TA-590 DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-016

1шт.

2

J901356

GASKET,0.5mm Thk

- mounting, turbocharger

1шт.

3

J905417

STUD

- mounting, turbocharger

4шт.

4

J901961

NUT

- hex, M10

4шт.

5

REF

INSTRUCTION

MANIFOLD - exhaust, see Figure 2-018

1шт.

6

J906917

MANIFOLD

CONNECTION - air crossover

1шт.

7

J903330

FLANGE BOLT

BOLT - flanged hex, M8 x 20 MM (Replaces J900629)

4шт.

8

J901804

INTAKE AIR HOSE

HOSE -, Serial Range: turbocharger-crossover

1шт.

9

J906210

GASKET

- crossover connection

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

11

REF

INSTRUCTION

AFTERCOOLER - intake, see Figure 2-018

1шт.

13

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 3/16 inch (10 x 27 x 5 MM)

4шт.

14

A172484

BRACKET

- elbow

1шт.

15

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

16

892-1110

LOCK WASHER,M10

WASHER - lock, M10

2шт.

17

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

18

892-1110

LOCK WASHER,M10

WASHER - lock, M10

2шт.

19

A173623

ELBOW

- exhaust, turbocharger (Replaces A171822)

1шт.

20

A170467

CLAMP,72mm ID

-, Serial Range: elbow-turbocharger

1шт.

24

J903933

HOSE

ASSEMBLY - oil supply

1шт.

25

A77457

FITTING

CONNECTION - supply hose

1шт.

26

J905202

TUBE

CONNECTION - oil, drain tube

1шт.

27

J901805

GASKET

- drain tube

1шт.

28

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- flanged hex, M8 x 20 MM

2шт.

29

J903745

LARGE HOSE

HOSE - drain tube

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.
