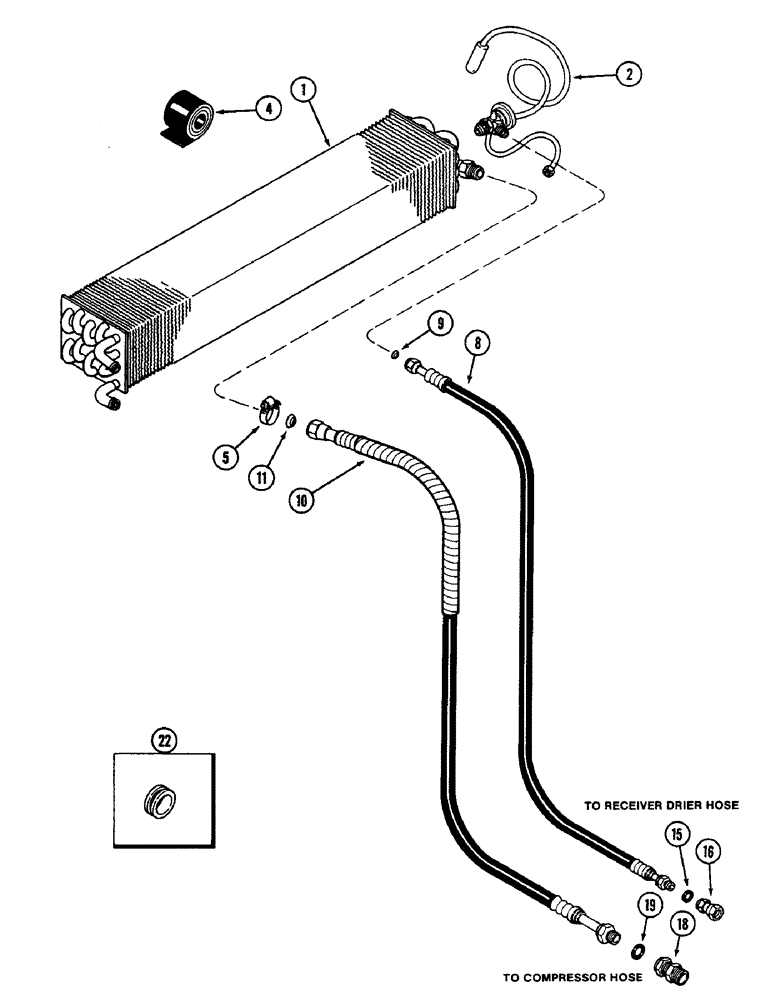

Запчасти Case IH 2096 (9-442) - CAB, AIR CONDITIONING COOLING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - air conditioning and heater (See Figure 9-438)

1шт.

2

F64389

VALVE

- expansion

1шт.

4

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/2 inch (64 x 305 x 3 MM) (Order A42902, cut to desired length)

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4 inch (30 to 44 MM)

1шт.

8

F66224

HYDRAULIC HOSE

HOSE - pressure (To coupling)

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

F66225

A/C HOSE

HOSE - suction (To compressor)

1шт.

11

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4 inch tube x 45 degree flare

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- coupling

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - hose, high, Serial Range: side-receiver-drier

1шт.

18

A61194

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - hose, compressor, Includes: Ref. 19

1шт.

19

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

22

F64485

GROMMET

- hose

2шт.
