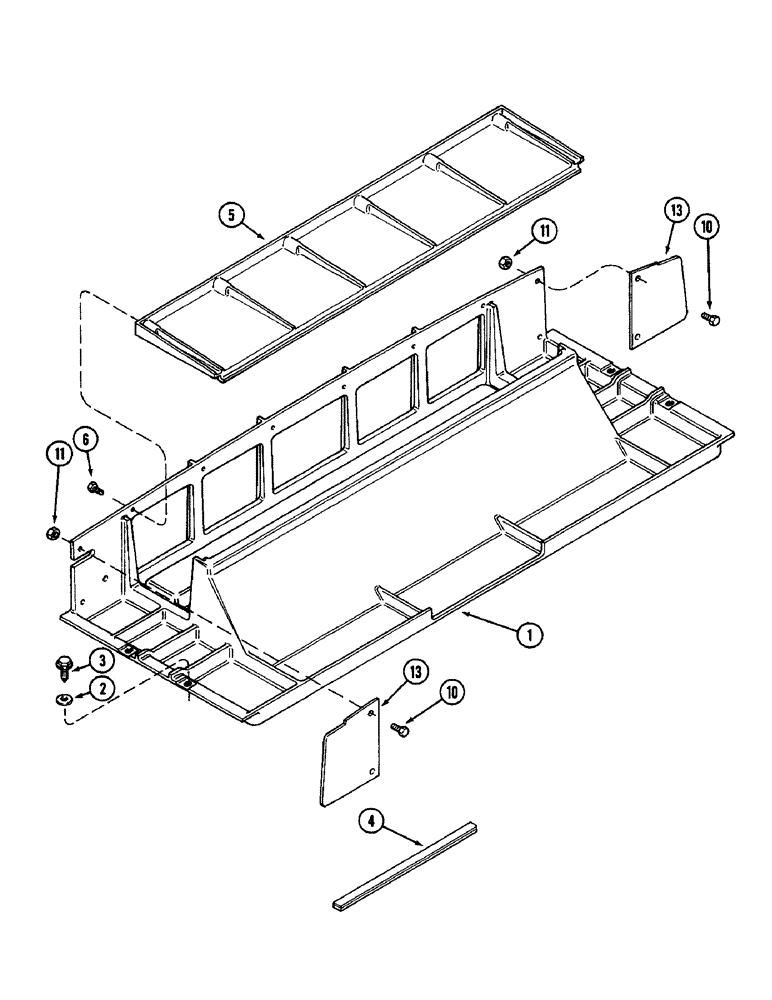

Запчасти Case IH 2096 (9-436) - CAB, PLENUM (09) - CHASSIS/ATTACHMENTS

1

F64861

PAN

CHANNEL - passage, air

1шт.

2

F44834

BUSHING

- nylon

4шт.

3

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - washer head self-tapping, no. 10-16 x 1/2 inch

4шт.

4

F64736

SEAL - tube, floor 111-1/2 inch (2832 MM) (Order F64119)

2шт.

F64119

SEALING STRIP

SEAL - 100 feet roll (30 M) (Cut to desired length)

1шт.

5

F64884

COVER

- top, air duct

1шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - pan head, no. 8-16 x 3/4 inch

6шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

13

F63614

PLATE ASSY.

PLATE - end, air tube

1шт.
